Product Information
- Fits Models: 2WD S10 Blazer and S15 Jimmy
- Fits Years: 82-05
- Fits Transmissions: 700R4, 4L60, 4L60E, 4L65E, T5, TKO, TKX, 2WD-AR5.

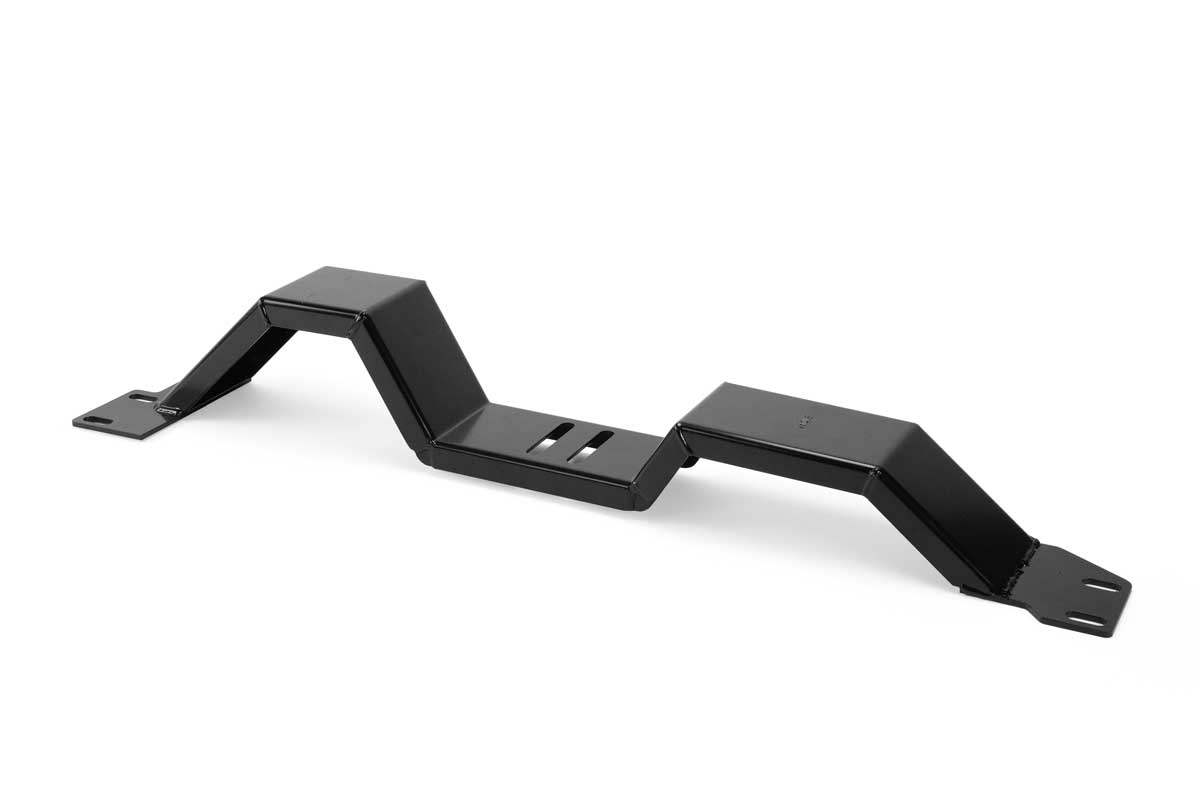

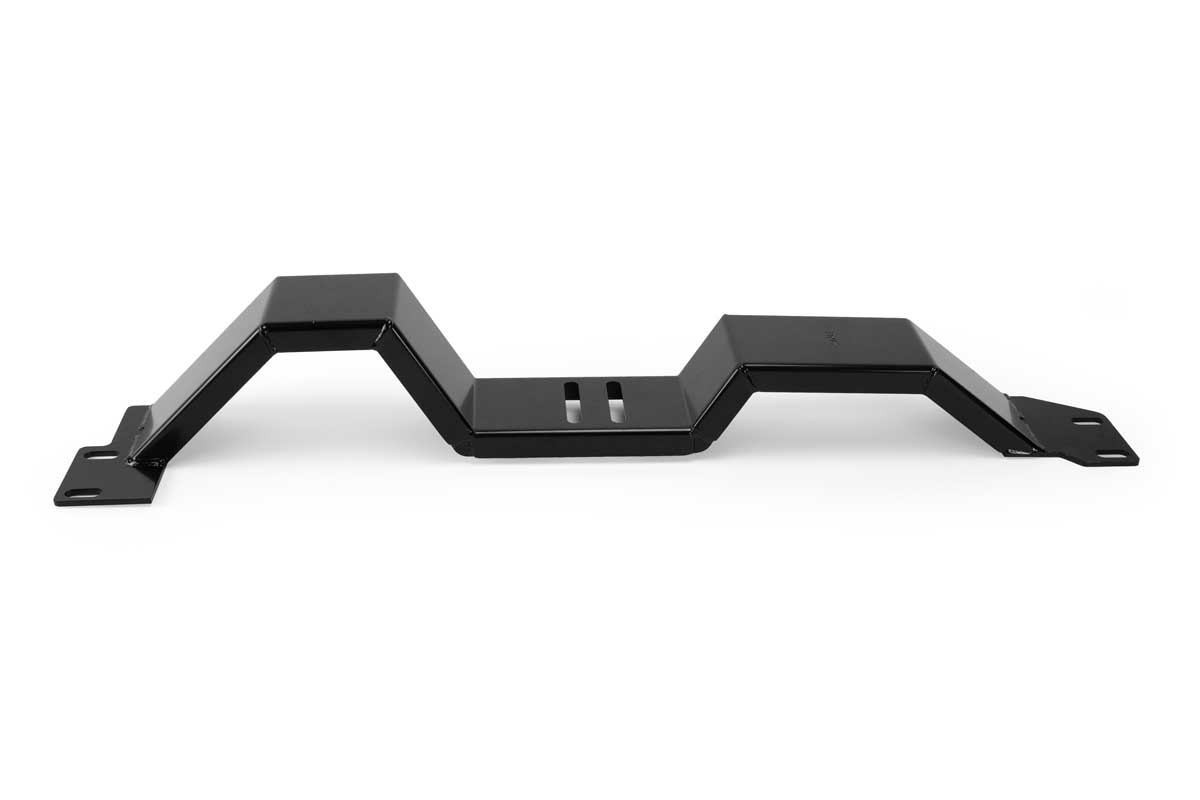

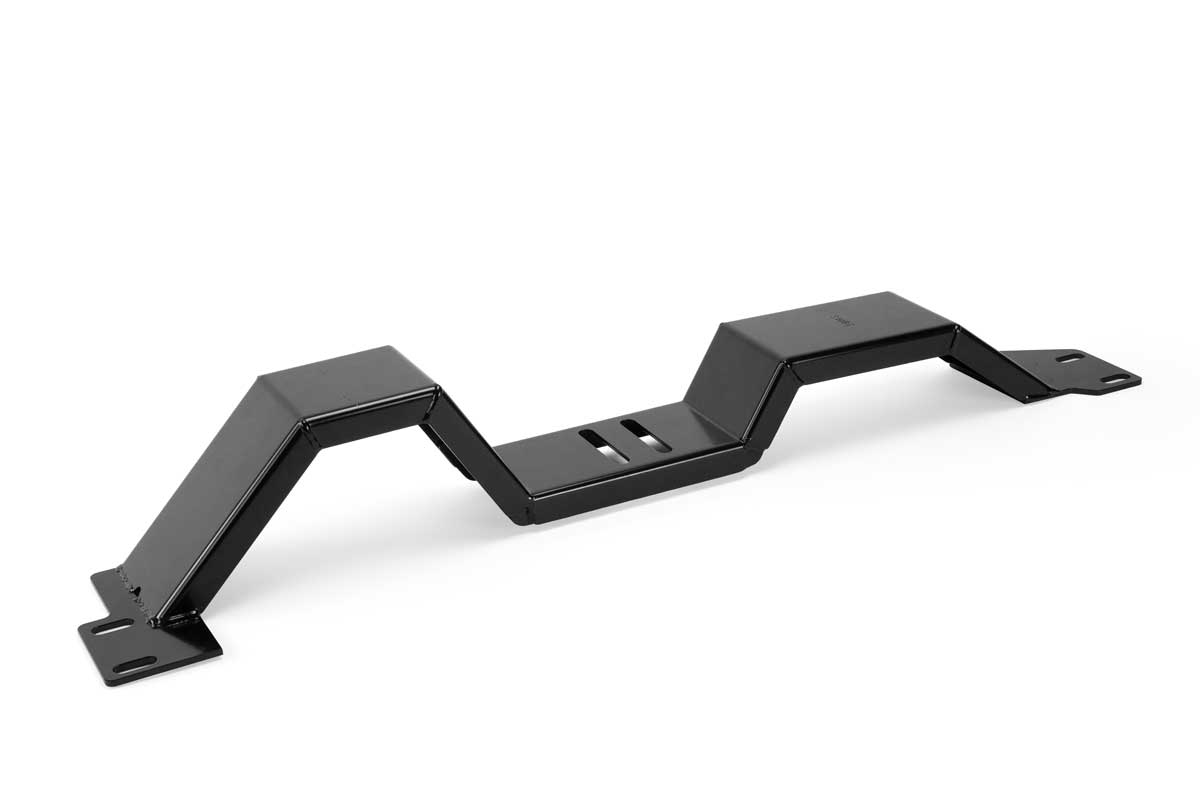

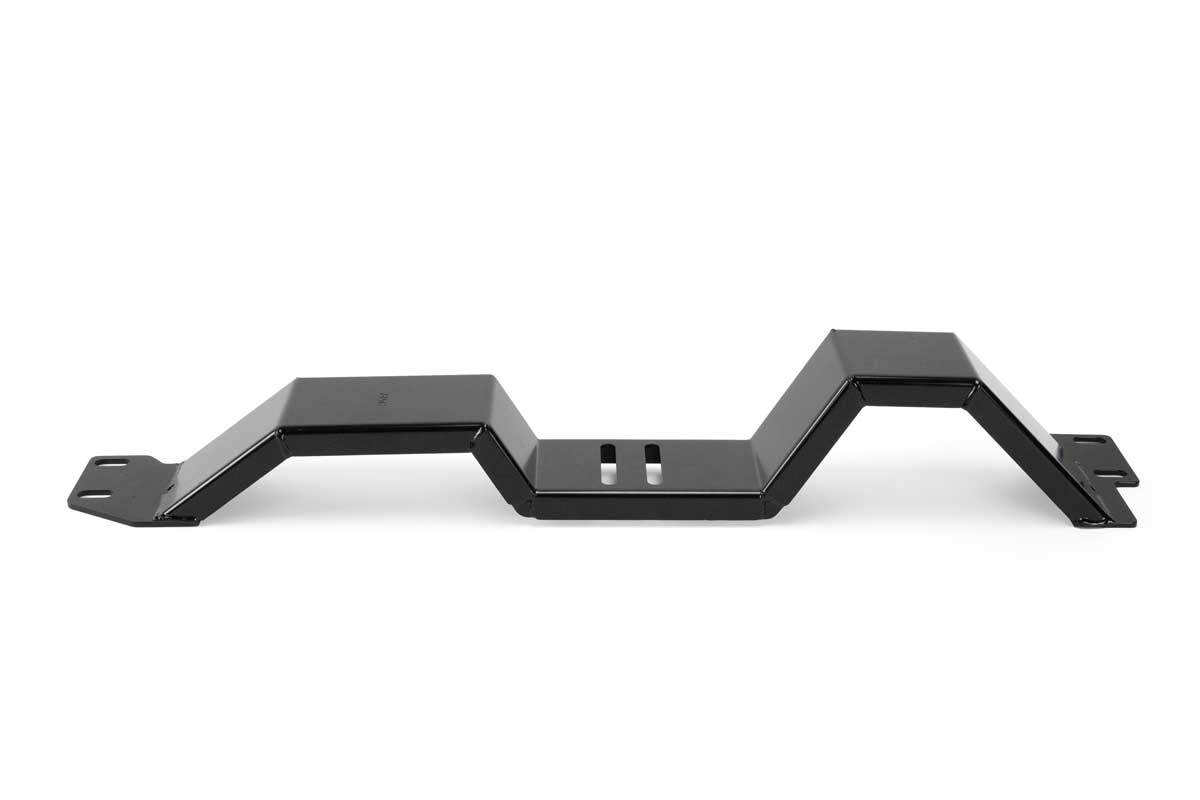

- The RCS-10B-700 is a stock replacement designed to allow a dual exhaust system to be routed under the crossmember, allowing for easier header connection, while keeping the exhaust above the frame rails.
- If installing a TKO or TKX transmission slight floor pan modifications may be required. A GMTM-S short transmission mount is recommended for a TKO or TKX.
- This crossmember is designed for 2WD S10 Blazers with a horizontal frame shelf on each side of the vehicle. Refer to the product image to determine that your chassis has the same configuration.
- This crossmember is for RWD applications only.
- In some cases, an RCS-10B-700 installed with a T5 transmission may require a custom transmission mount to maintain proper drive line angle.
- Note: If your vehicle has a crossmember mounting pattern through the side of your frame rail, this crossmember will not work. Use the RCS10 instead.
- We recommend a polyurethane transmission mount. The GMTM is sold separately.
- In some cases, an RCS-10B-700 installed with a T5 transmission may require a custom transmission mount to maintain proper drive line angle.
- Fits Models: 2WD S10 Blazer and S15 Jimmy
- Fits Years: 82-05
- Fits Transmissions: 700R4, 4L60, 4L60E, 4L65E, T5, TKO, TKX, 2WD-AR5.
- The RCS-10B-700 is a stock replacement designed to allow a dual exhaust system to be routed under the crossmember, allowing for easier header connection, while keeping the exhaust above the frame rails.
- If installing a TKO or TKX transmission slight floor pan modifications may be required. A GMTM-S short transmission mount is recommended for a TKO or TKX.
- This crossmember is designed for 2WD S10 Blazers with a horizontal frame shelf on each side of the vehicle. Refer to the product image to determine that your chassis has the same configuration.
- This crossmember is for RWD applications only.
- In some cases, an RCS-10B-700 installed with a T5 transmission may require a custom transmission mount to maintain proper drive line angle.
- Note: If your vehicle has a crossmember mounting pattern through the side of your frame rail, this crossmember will not work. Use the RCS10 instead.
- We recommend a polyurethane transmission mount. The GMTM is sold separately.
- In some cases, an RCS-10B-700 installed with a T5 transmission may require a custom transmission mount to maintain proper drive line angle.
G Force and our Partner Brands engineer bold solutions that make installation easier without sacrificing quality. Get more support from G Force.
Our engineers are also car enthusiasts—which makes designing automotive parts second nature. Because we use our products, we know the importance of crafting them with strength and durability. Get more performance from G Force.
Specifications
Weight: 14 lbsShipping Dimensions: 38 × 9 × 6 In
Finish: Black Powder Coated

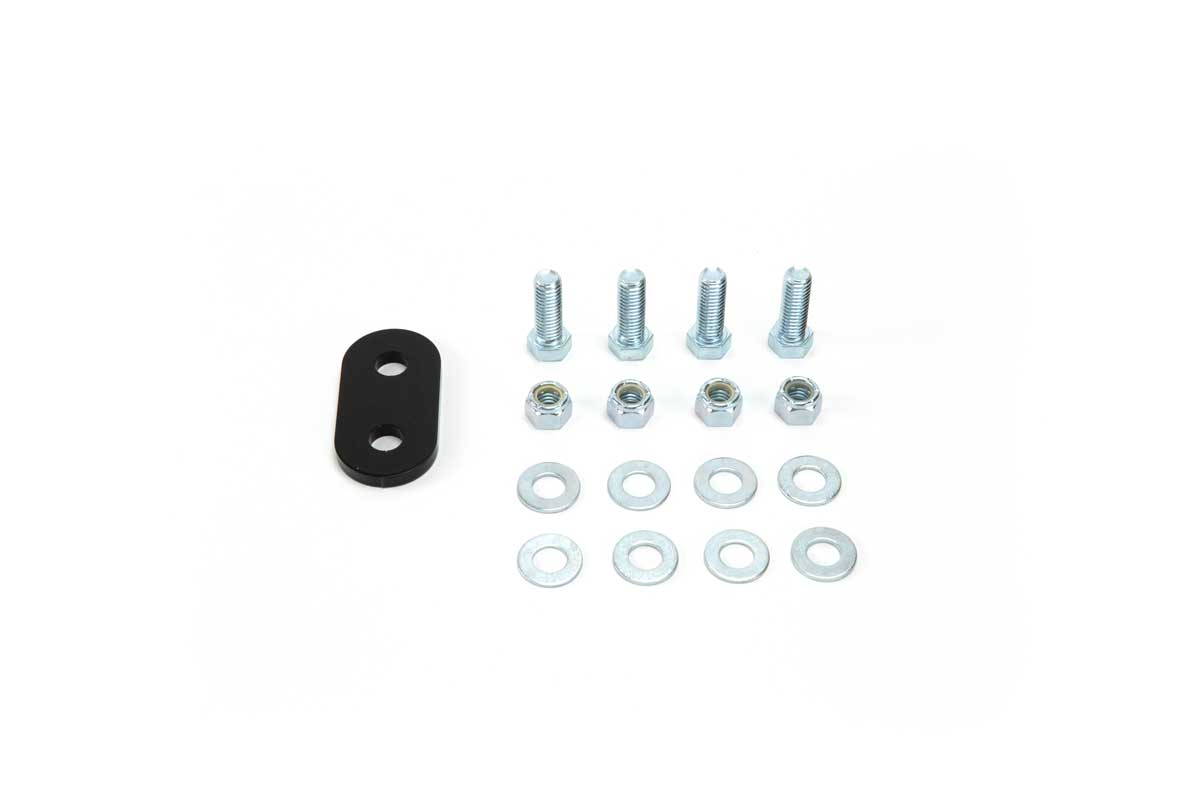

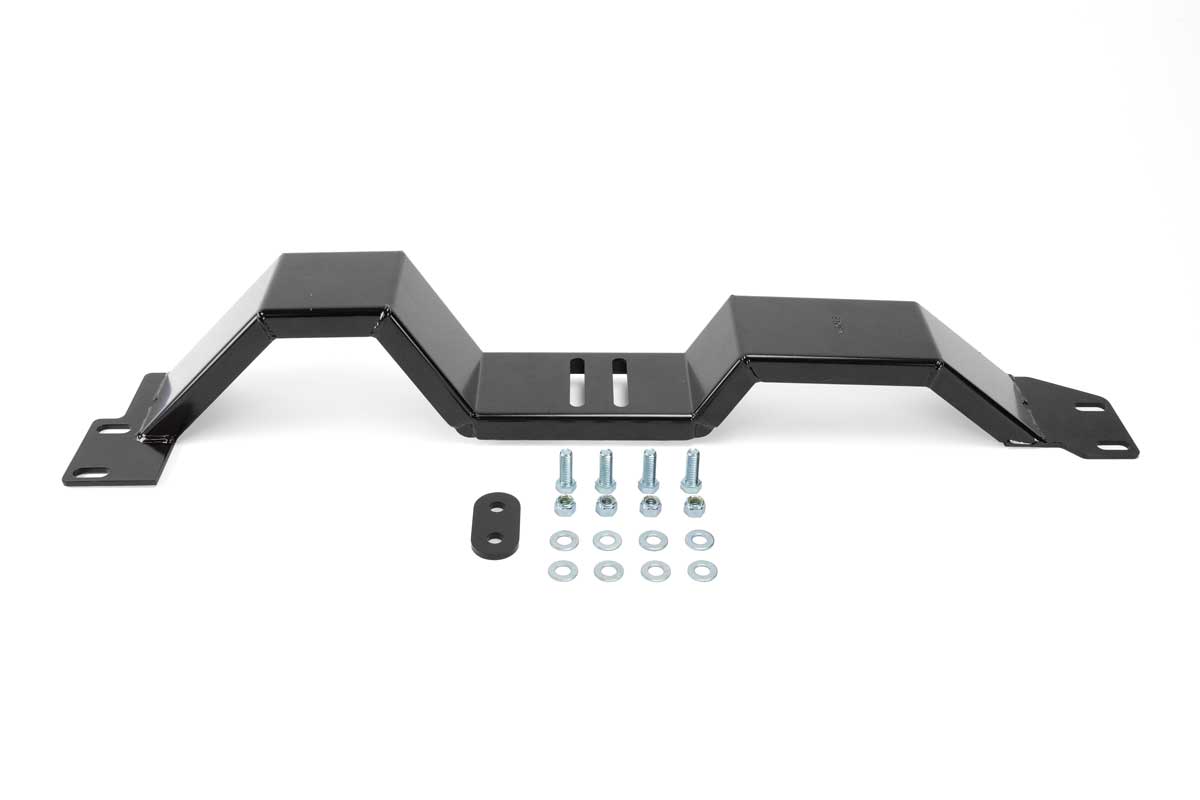

Mounting Hardware: Included
See the G Force Crossmember Overview for more info.
This crossmember is great for stock chassis and lowered trucks alike.See the G Force Crossmember Overview for more info.
This crossmember is installed with the G Force label facing the rear of the vehicle. However, another determining feature is the crossmember center tube which has a 1/2″ drain slot that is positioned on the bottom and on the passenger side next to the hump weldment.
This crossmember is installed so that the exhaust clearance humps are closed on the top and open on the bottom.
To use the provided 7/16″ hardware it is necessary to enlarge holes in your frame rails with a 1/2″ drill. If you choose to use the stock size 3/8″ hardware, it is strongly recommended to use new Grade #8 fasteners to compensate.
