Product Information
- Fits Models: All GM RWD Vehicles.
- Fits Years: 1955 - Current
- Fits Transmissions: n/a
- The RCKIT is the perfect solution to accommodate applications that are not covered by one of our direct bolt-in crossmembers.
- Our "build it yourself" crossmember kit is designed to accommodate most GM frames that utilize frame rails for crossmember attachment.
- The RCKIT can be used for other manufacturer vehicles but will require modification to accommodate the associated transmission mount pattern. This kit is designed for the early GM 2-stud pattern on 1-1/2” center.
- This kit requires the installer to have cutting and welding capabilities.
- The maximum overall length of the combined components is 61" across.

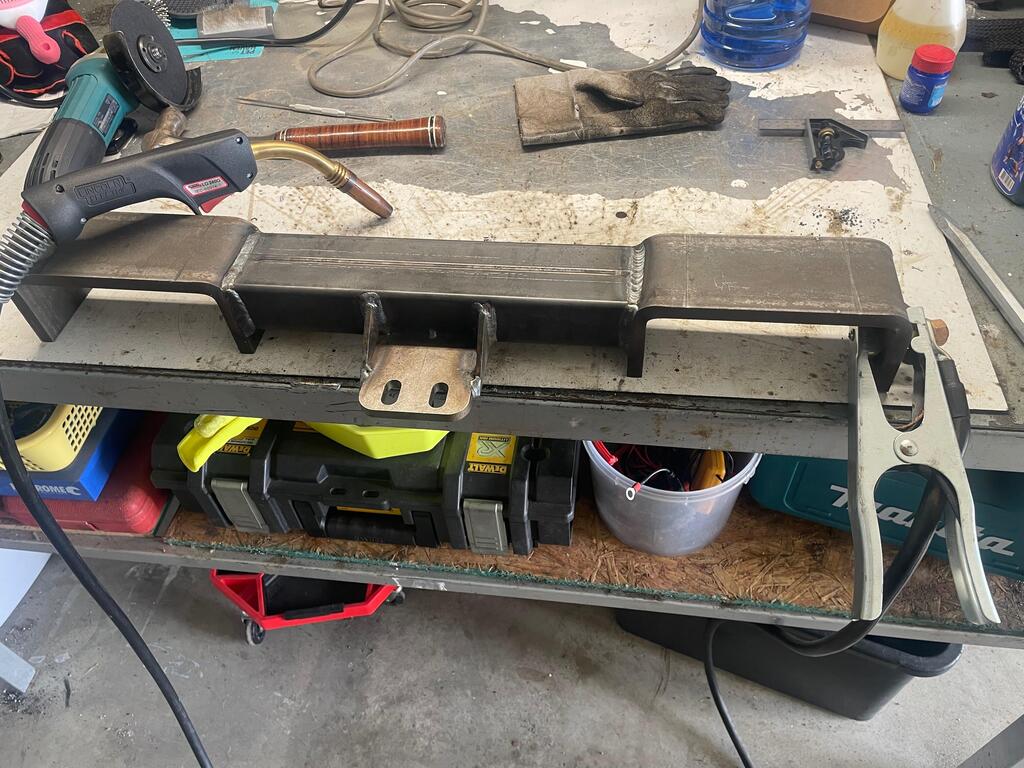

- The Kit includes:
- (2) Exhaust Cutouts 8" outer width, 7" inner width
- (2) Frame Rail mounting angles 2" x 2"
- (1) 32" length of tubing
- (1) 13" Slotted Center Tube- underside of tubing has an access pocket to allow ease of transmission mount installation
- (1) Transmission Mount Washer Plate
- (1) Optional Transmission Mounting Tab
- Fits Models: All GM RWD Vehicles.
- Fits Years: 1955 - Current
- Fits Transmissions: n/a
- The RCKIT is the perfect solution to accommodate applications that are not covered by one of our direct bolt-in crossmembers.
- Our "build it yourself" crossmember kit is designed to accommodate most GM frames that utilize frame rails for crossmember attachment.
- The RCKIT can be used for other manufacturer vehicles but will require modification to accommodate the associated transmission mount pattern. This kit is designed for the early GM 2-stud pattern on 1-1/2” center.
- This kit requires the installer to have cutting and welding capabilities.
- The maximum overall length of the combined components is 61" across.
- The Kit includes:
- (2) Exhaust Cutouts 8" outer width, 7" inner width
- (2) Frame Rail mounting angles 2" x 2"
- (1) 32" length of tubing
- (1) 13" Slotted Center Tube- underside of tubing has an access pocket to allow ease of transmission mount installation
- (1) Transmission Mount Washer Plate
- (1) Optional Transmission Mounting Tab
G Force and our Partner Brands engineer bold solutions that make installation easier without sacrificing quality. Get more support from G Force.
Our engineers are also car enthusiasts—which makes designing automotive parts second nature. Because we use our products, we know the importance of crafting them with strength and durability. Get more performance from G Force.
Specifications
Weight: 35 lbsShipping Dimensions: 37 × 9 × 6 In
Finish: Structural Steel
Mounting Hardware: Not Included
See the G Force Crossmember Overview for more info.See the G Force Crossmember Overview for more info.

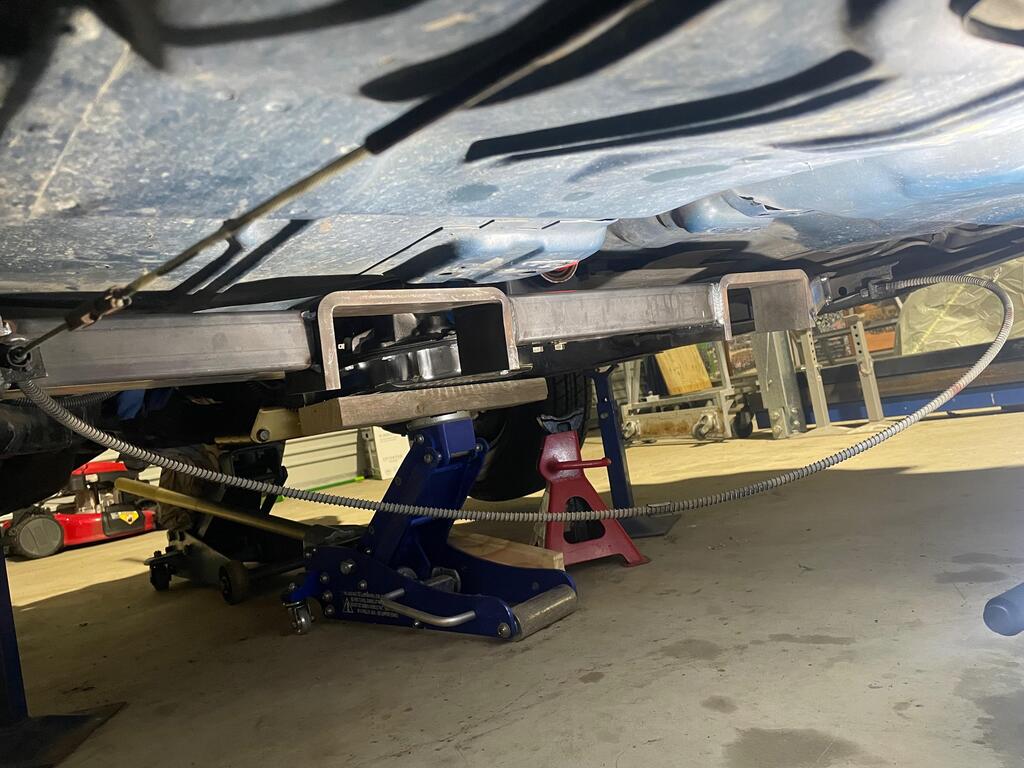

This crossmember is installed with the G Force label facing the rear of the vehicle. However, another determining feature is the crossmember center tube which has a 1/2″ drain slot that is positioned on the bottom and on the passenger side next to the hump weldment.
This crossmember is installed so that the exhaust clearance humps are closed on the top and open on the bottom.
To use the provided 7/16″ hardware it is necessary to enlarge holes in your frame rails with a 1/2″ drill. If you choose to use the stock size 3/8″ hardware, it is strongly recommended to use new Grade #8 fasteners to compensate.
