Product Information
- Fits Models: 442, Cutlass, F85, GTO, LeMans, Tempest, GS, Skylark, Chevelle, El Camino, Malibu, Monte Carlo, Special, Sport Wagon, Vista Cruiser, Grand Prix.
- Fits Years: 64-72
- 1964-1972 Hardtops Only. Will not fit convertibles or El Caminos with boxed frame.
- Fits Transmissions:
1964-1967- TH350, TH200, TH250, Muncie, T10, Super T10, Powerglide, Saginaw, 700R4, 4L60, Pre-1996 4L60E, 4L60E, 4L65E, TKO-500, TKO-600, TKX, 2WD-AR5
1968-1972- TH350, TH200, TH250, Muncie, T10, Super T10, Powerglide, Saginaw, TH400 Short Tail, TH375, 2004R, 6L80E Slip Yoke, 6L90E Slip Yoke, 700R4, 4L60, Pre-1996 4L60E, 4L60E, 4L65E, TKO-500, TKO-600, TKX, OEM T56, T56, T-56 Magnum, T-56XL, Magnum XL, TR6060, 2WD-AR5. - If you are looking for improved performance check out our lighter weight, next generation for this transmission crossmember- RCAENG-BLK. What is a lightweight crossmember? Find out here.
- We recommend a polyurethane transmission mount. The GMTM is sold separately.
- The distance between the crossmember frame mounting holes is 53-5/8". To ensure proper crossmember selection be sure to measure your frame before you order.
- Fits Models: 442, Cutlass, F85, GTO, LeMans, Tempest, GS, Skylark, Chevelle, El Camino, Malibu, Monte Carlo, Special, Sport Wagon, Vista Cruiser, Grand Prix.
- Fits Years: 64-72
- 1964-1972 Hardtops Only. Will not fit convertibles or El Caminos with boxed frame.
- Fits Transmissions:
1964-1967- TH350, TH200, TH250, Muncie, T10, Super T10, Powerglide, Saginaw, 700R4, 4L60, Pre-1996 4L60E, 4L60E, 4L65E, TKO-500, TKO-600, TKX, 2WD-AR5
1968-1972- TH350, TH200, TH250, Muncie, T10, Super T10, Powerglide, Saginaw, TH400 Short Tail, TH375, 2004R, 6L80E Slip Yoke, 6L90E Slip Yoke, 700R4, 4L60, Pre-1996 4L60E, 4L60E, 4L65E, TKO-500, TKO-600, TKX, OEM T56, T56, T-56 Magnum, T-56XL, Magnum XL, TR6060, 2WD-AR5. - If you are looking for improved performance check out our lighter weight, next generation for this transmission crossmember- RCAENG-BLK. What is a lightweight crossmember? Find out here.
- We recommend a polyurethane transmission mount. The GMTM is sold separately.
- The distance between the crossmember frame mounting holes is 53-5/8". To ensure proper crossmember selection be sure to measure your frame before you order.
G Force and our Partner Brands engineer bold solutions that make installation easier without sacrificing quality. Get more support from G Force.
Our engineers are also car enthusiasts—which makes designing automotive parts second nature. Because we use our products, we know the importance of crafting them with strength and durability. Get more performance from G Force.

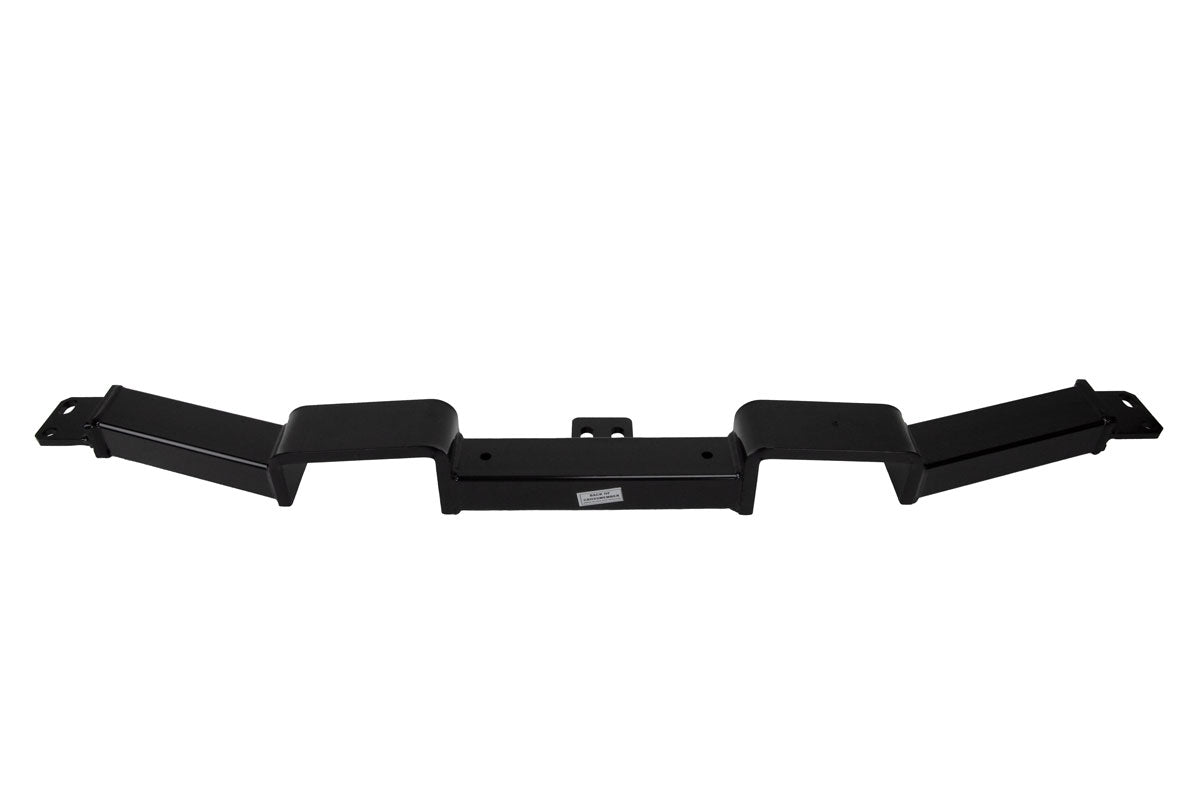

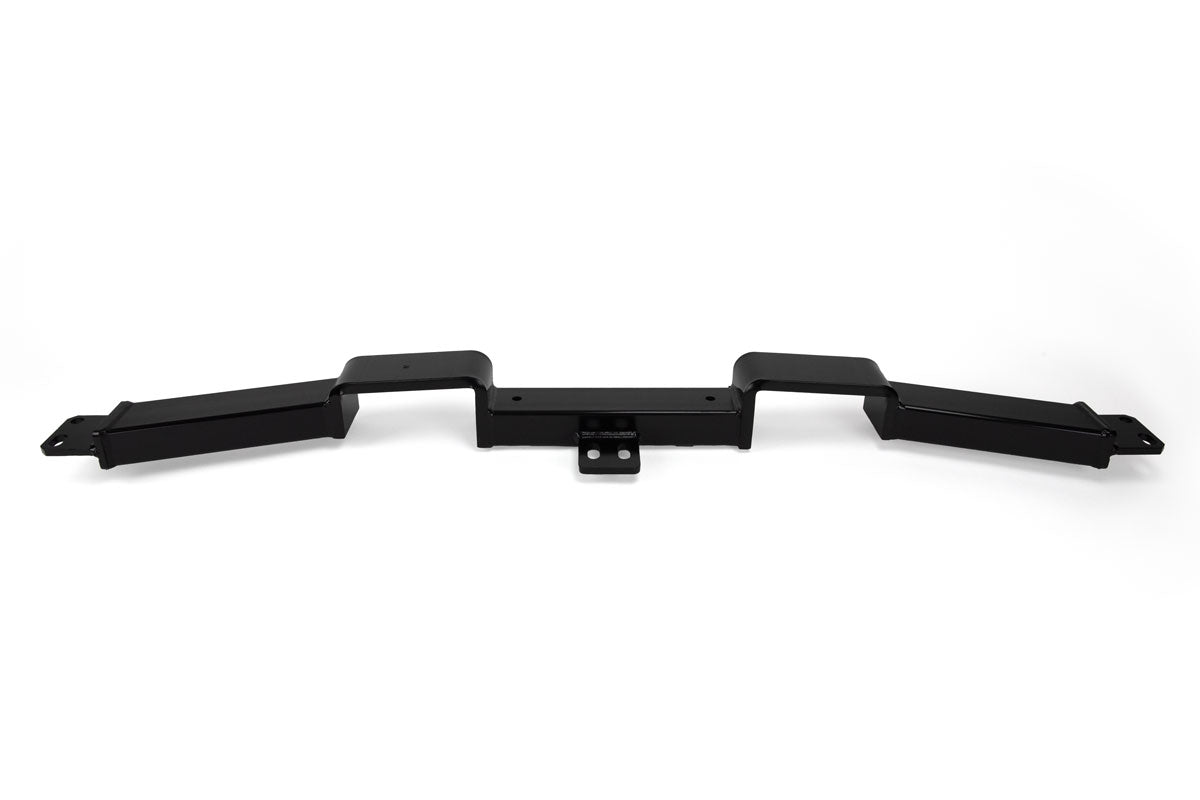

Specifications
Weight: 37 lbsShipping Dimensions: 57 X 11 X 5 In
Finish: Black Powder Coated

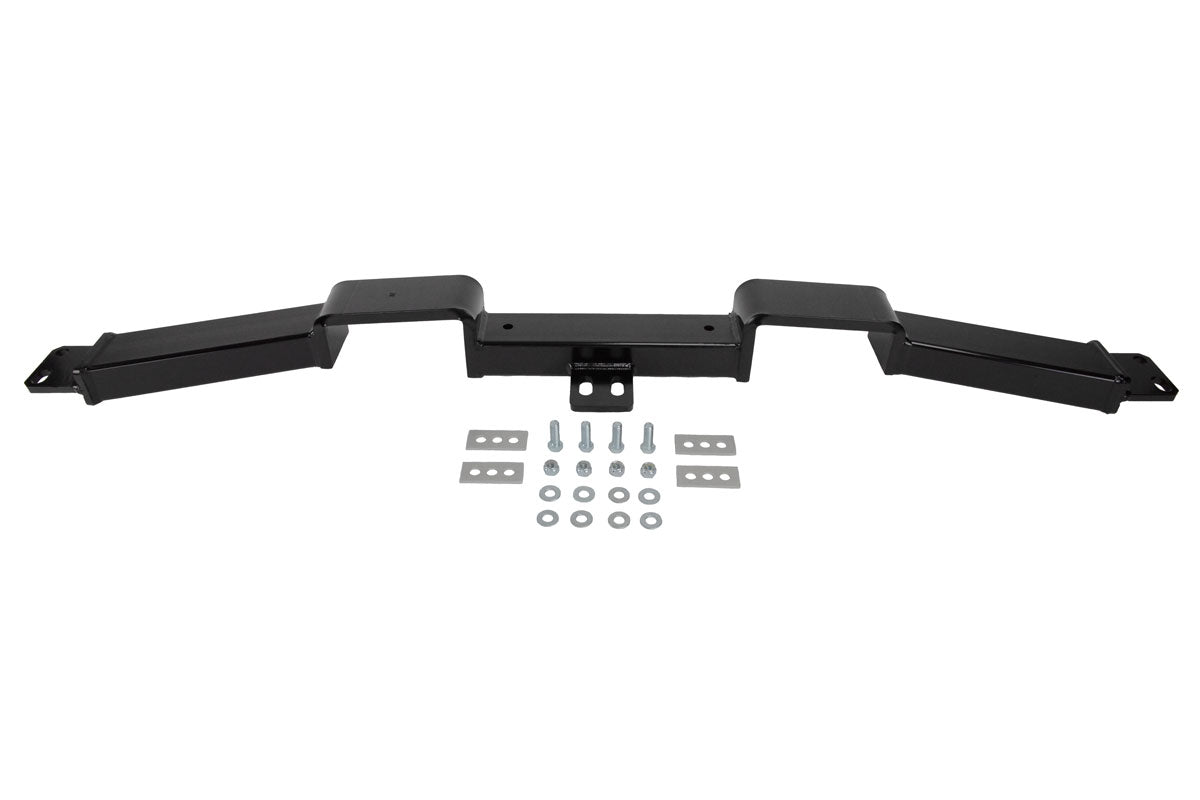

Mounting Hardware: Included
See the G Force Crossmember Overview for more info.

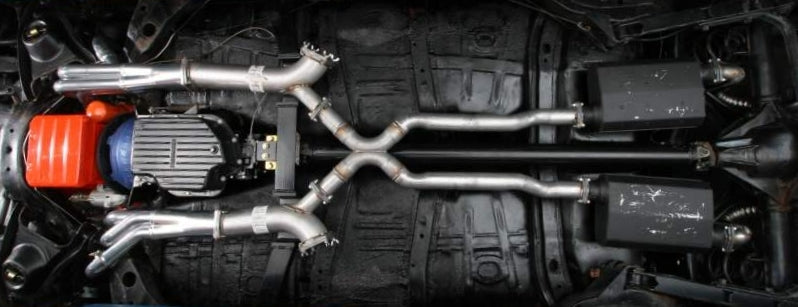

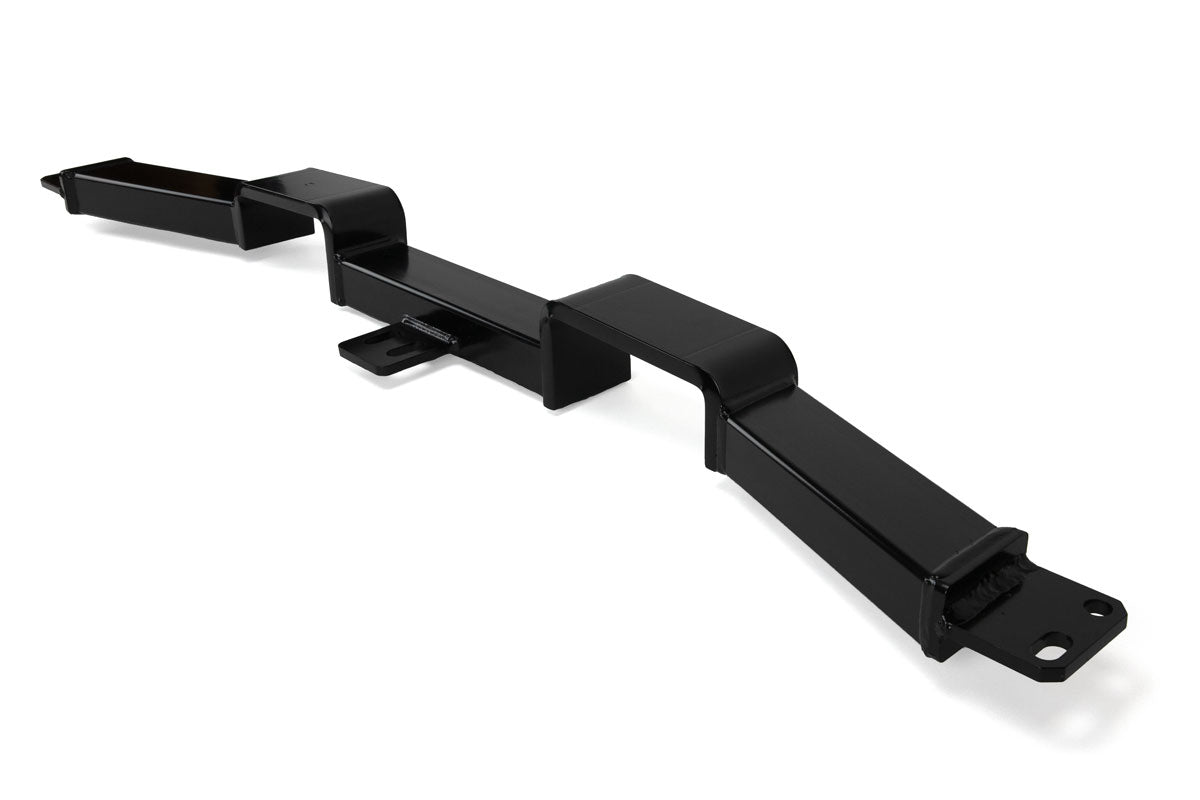

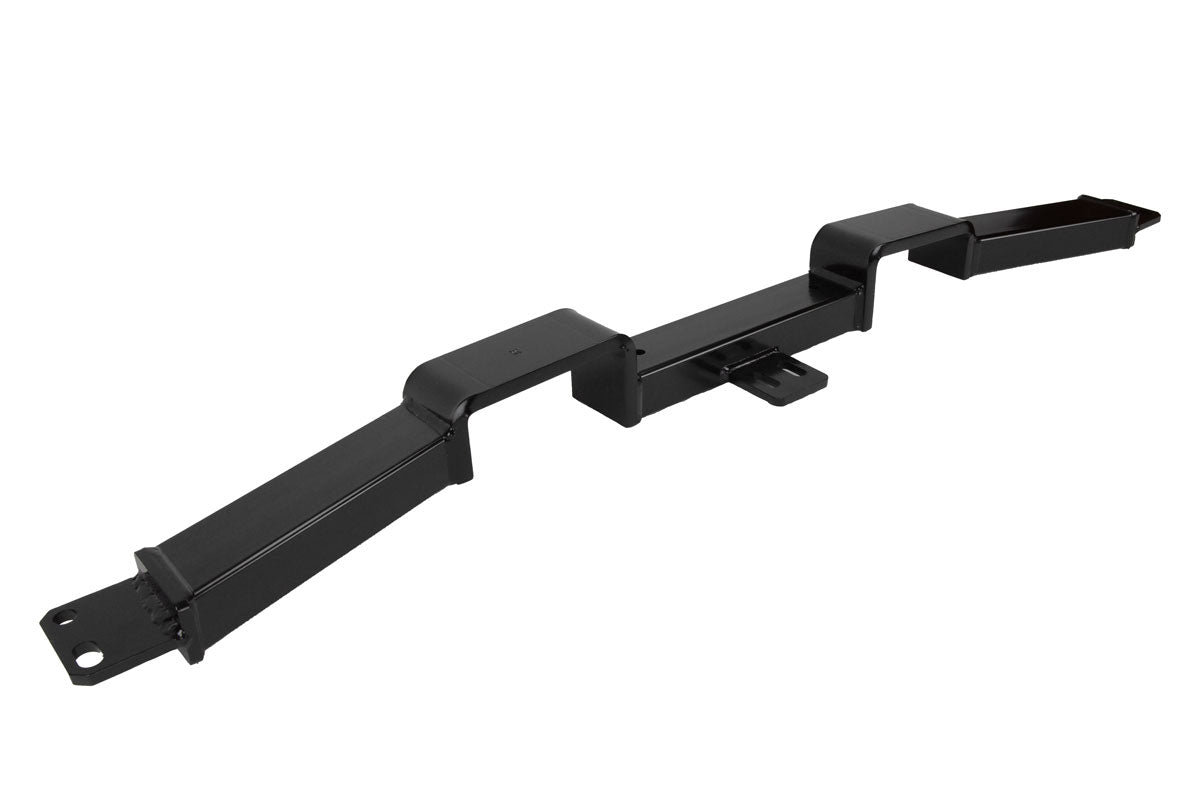

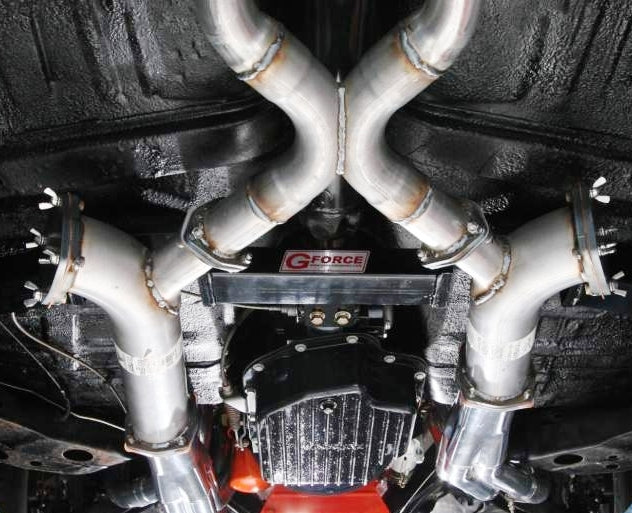

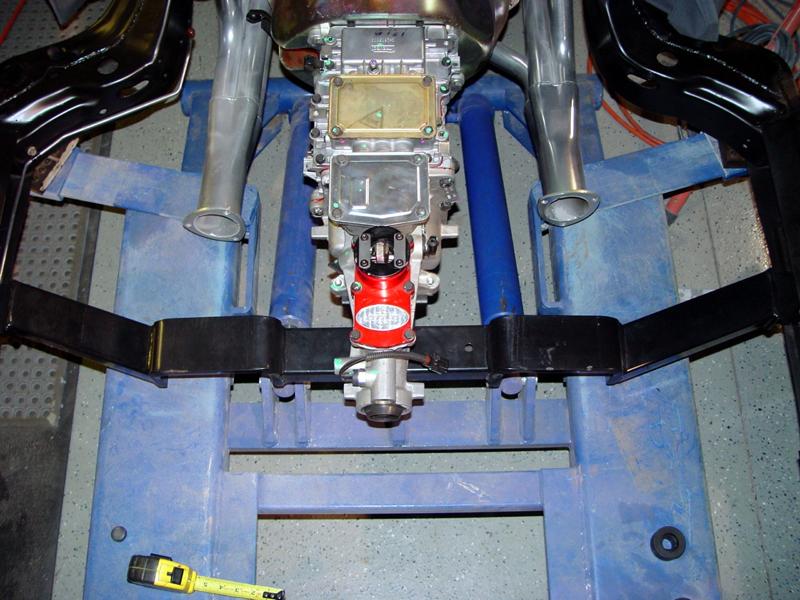

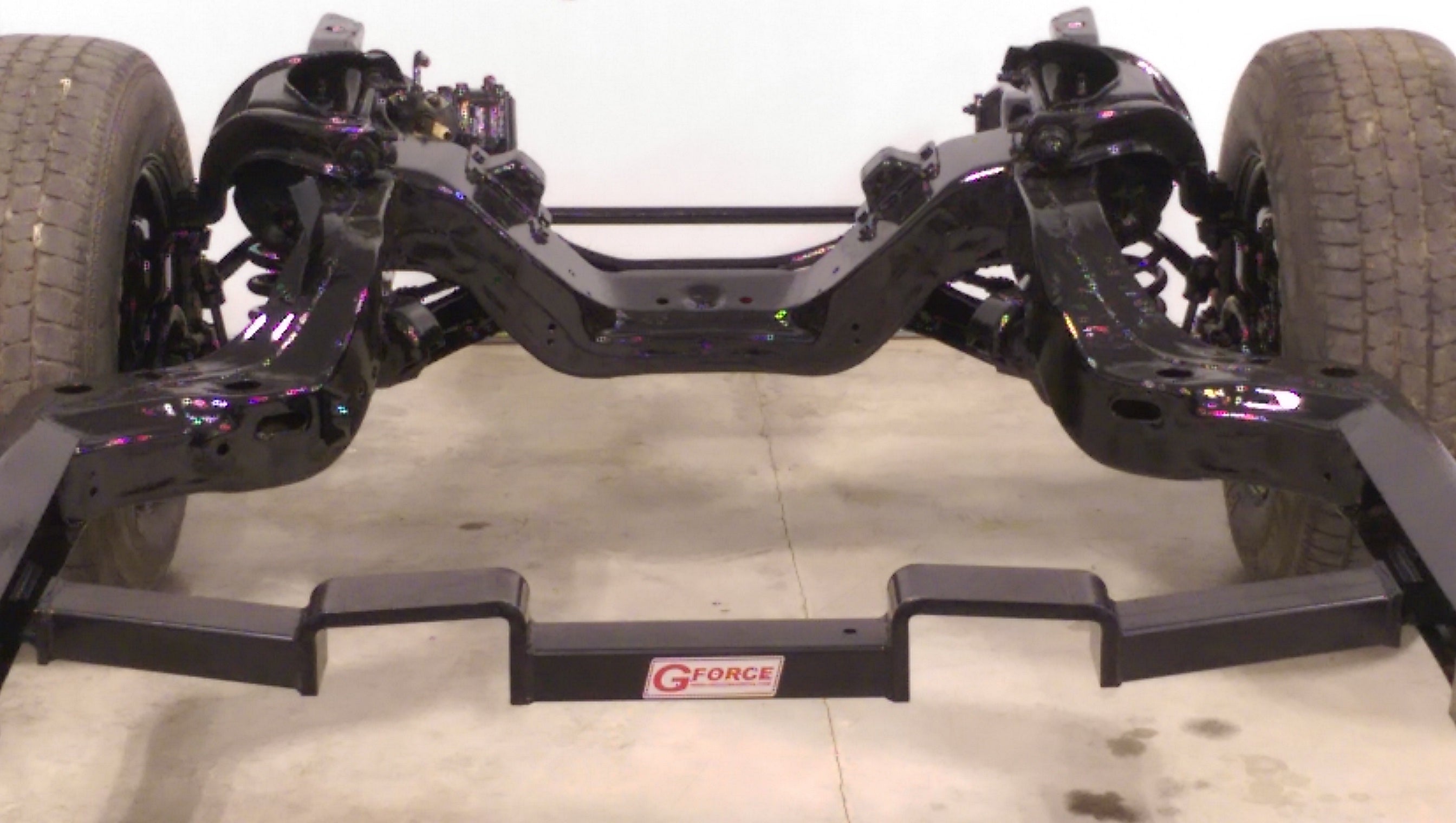

This transmission crossmember is installed with transmission mounting tabs positioned towards front of car, and exhaust double humps are on the top, next to floor pan.

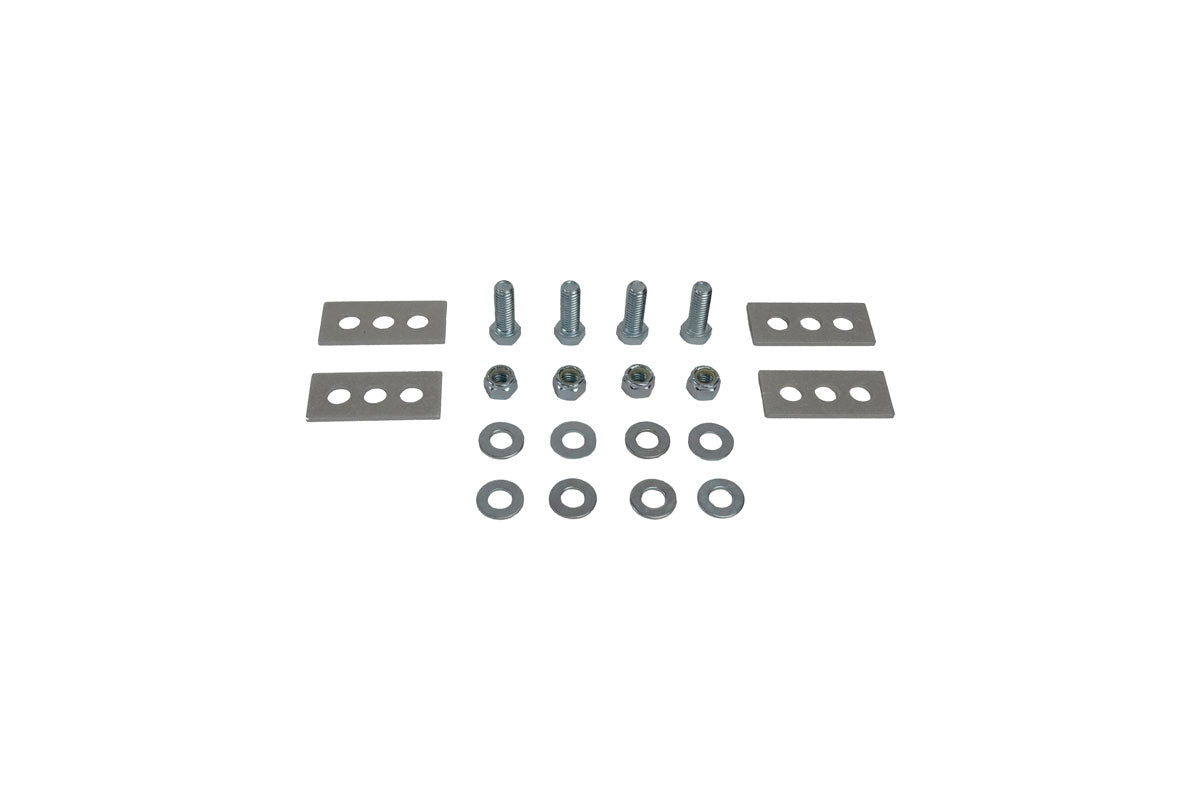

If you need them, aluminum spacers are provided to customize the height of your transmission mount. Position them between the crossmember and your GM three-hole transmission mount. Use longer bolts to insure full engagement into transmission mount. Some applications will not require any spacers.

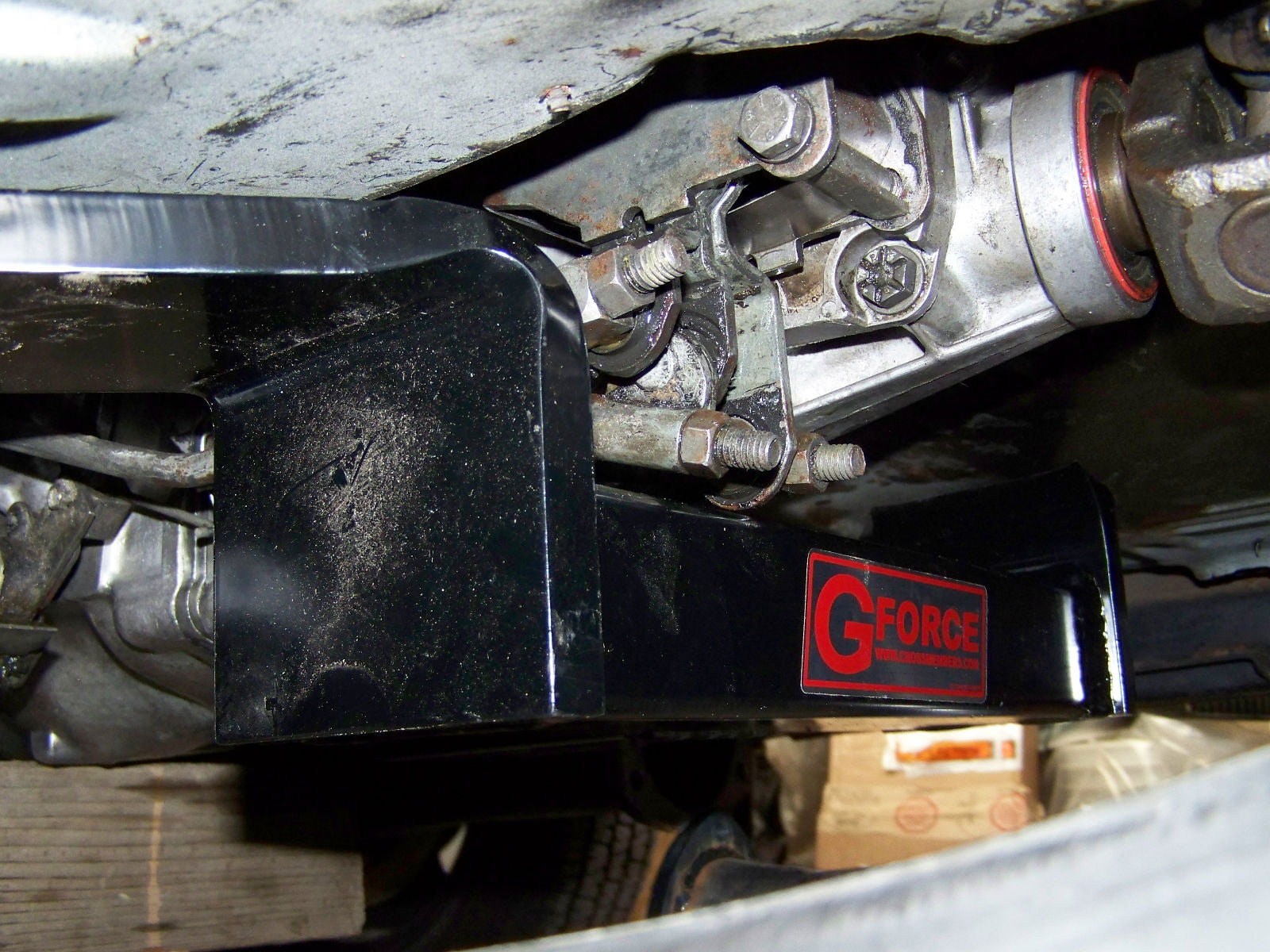

Some vehicles of this generation are equipped with a crossmember that bolt directly to the frame rail, while others are equipped with transmission crossmembers that utilize tab that sits on the frame rails and are embedded with a rubber liner. The RCAE bolts directly to the frame rails using the factory frame holes. Do not use the rubber liner. Instead, use the provided 7/16″ hardware and enlarge holes in your frame rails with a 1/2″ drill-bit. If you choose to use the stock size 3/8″ hardware, it is strongly recommended to use new Grade #8 fasteners to compensate.
