Product Information
- Fits Models: Camaro, Firebird, Trans AM
- Fits Years: 70-74 F-Body
- Fits Transmissions: 700R4, 4L60, Pre-1996 4L60E, TKO-500, TKO-600, TKX.
- This crossmember will fit 1996 and later 4L60E, and 4L65E transmission for LS engine swaps.
- We recommend a polyurethane transmission mount. The GMTM is sold separately.
- For the 1970-1974 F-Body frames the distance between the crossmember frame mounting holes is 30-1/2". To ensure proper crossmember selection be sure to measure your frame before you order.
- Fits Models: Camaro, Firebird, Trans AM
- Fits Years: 70-74 F-Body
- Fits Transmissions: 700R4, 4L60, Pre-1996 4L60E, TKO-500, TKO-600, TKX.
- This crossmember will fit 1996 and later 4L60E, and 4L65E transmission for LS engine swaps.
- We recommend a polyurethane transmission mount. The GMTM is sold separately.
- For the 1970-1974 F-Body frames the distance between the crossmember frame mounting holes is 30-1/2". To ensure proper crossmember selection be sure to measure your frame before you order.
We engineer bold solutions that make installation easier without sacrificing quality. Get more support from G Force.
Our engineers are also car enthusiasts—which makes designing automotive parts second nature. Because we use our products, we know the importance of crafting them with strength and durability. Get more performance from G Force.
Specifications
Weight: 20 lbsShipping Dimensions: 36 × 9 × 6 In
Finish: Black Powder Coated

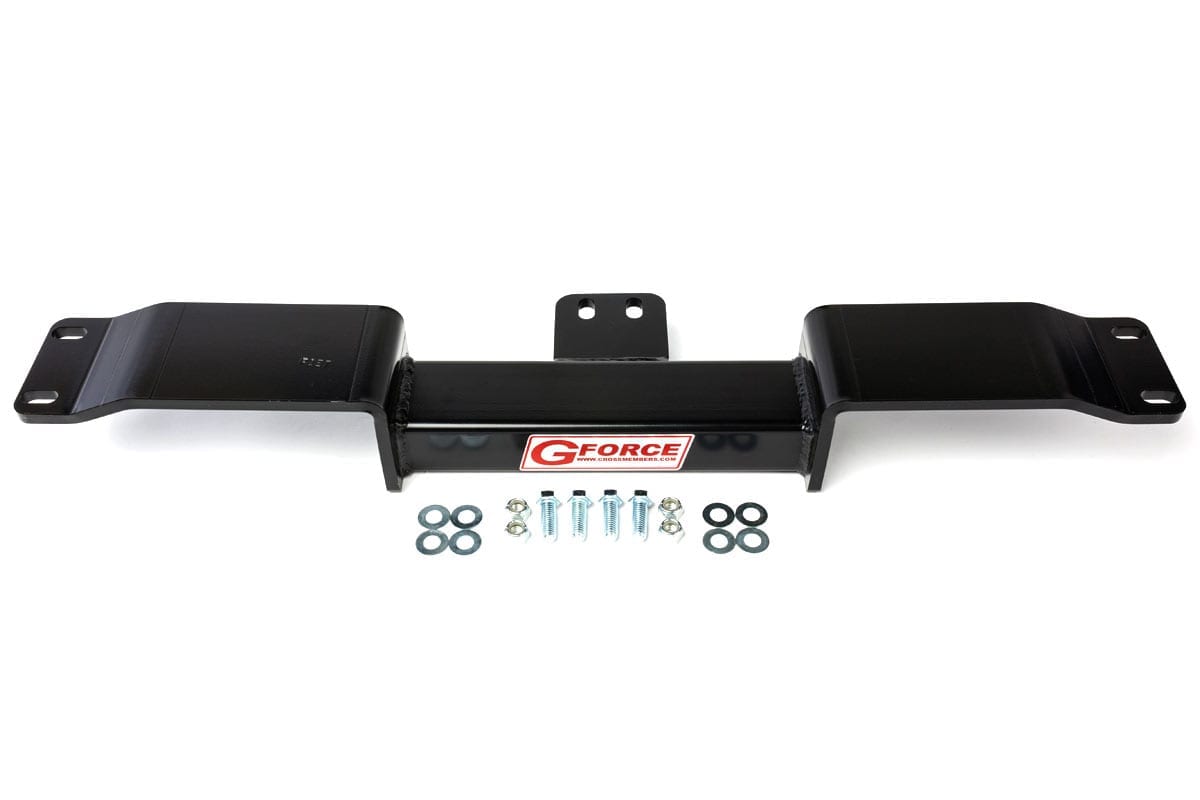

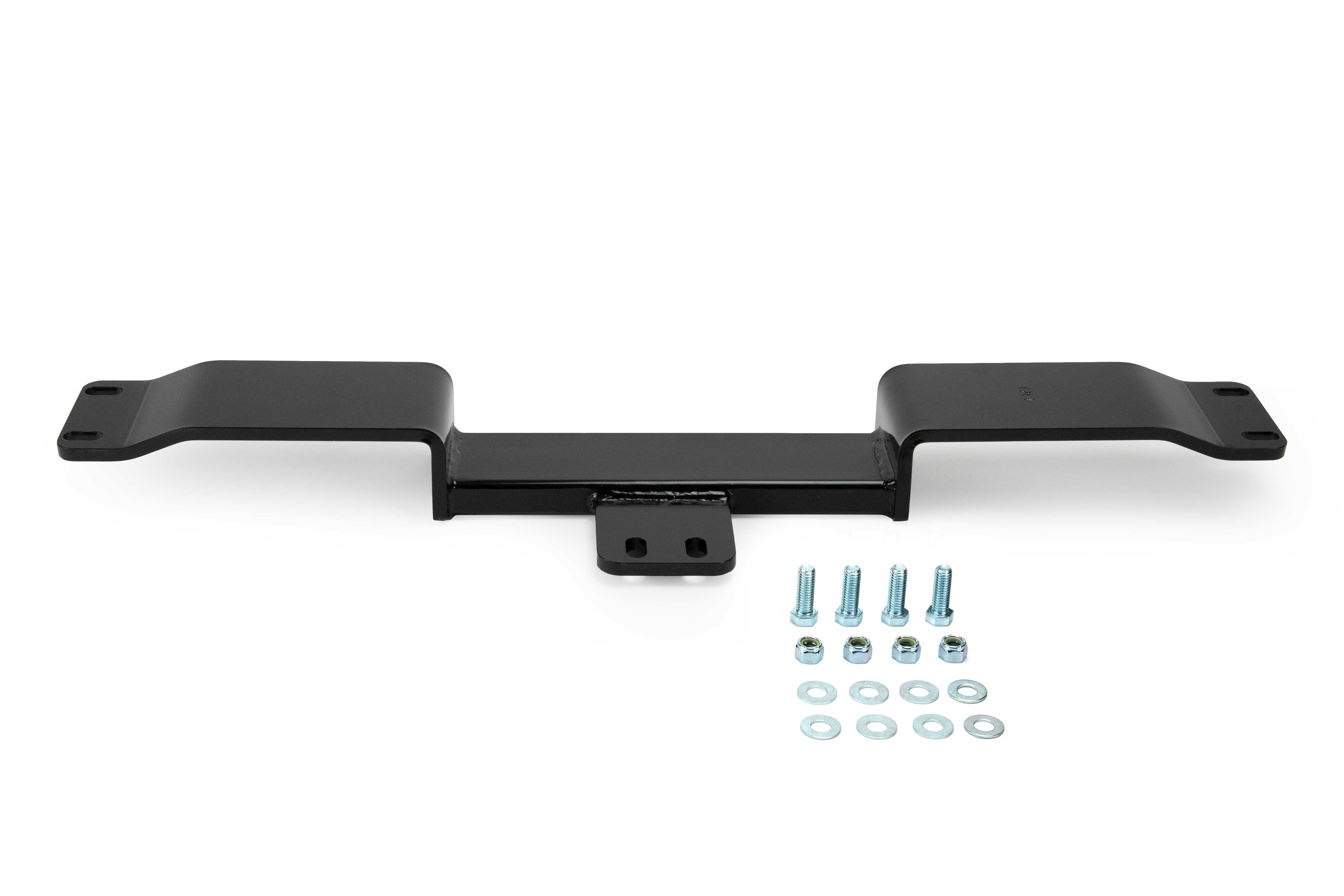

Mounting Hardware: Included
See the G Force Crossmember Overview for more info.

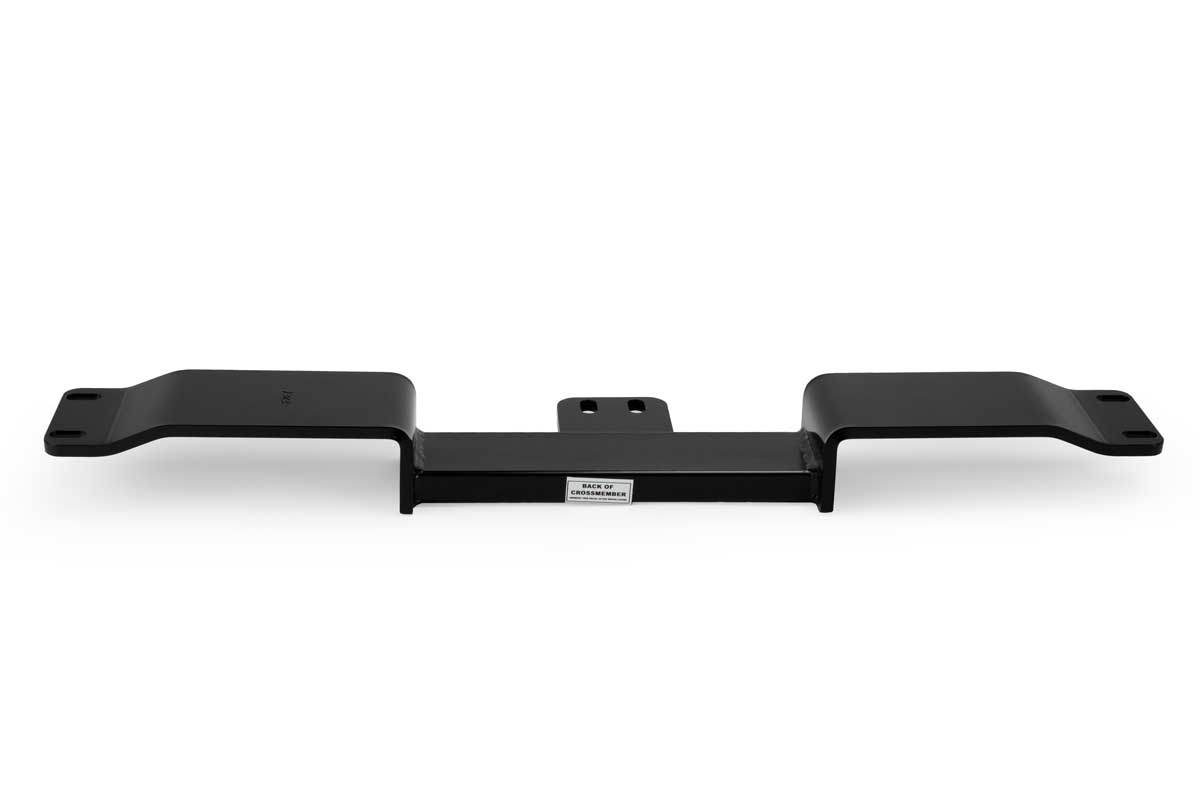

This crossmember is installed with the G Force label facing the rear of the vehicle. However, another determining feature is the crossmember center tube which has a 1/2″ drain slot that is positioned on the bottom and on the passenger side next to the hump weldment.
This crossmember is installed so that the exhaust clearance humps are closed on the top and open on the bottom.

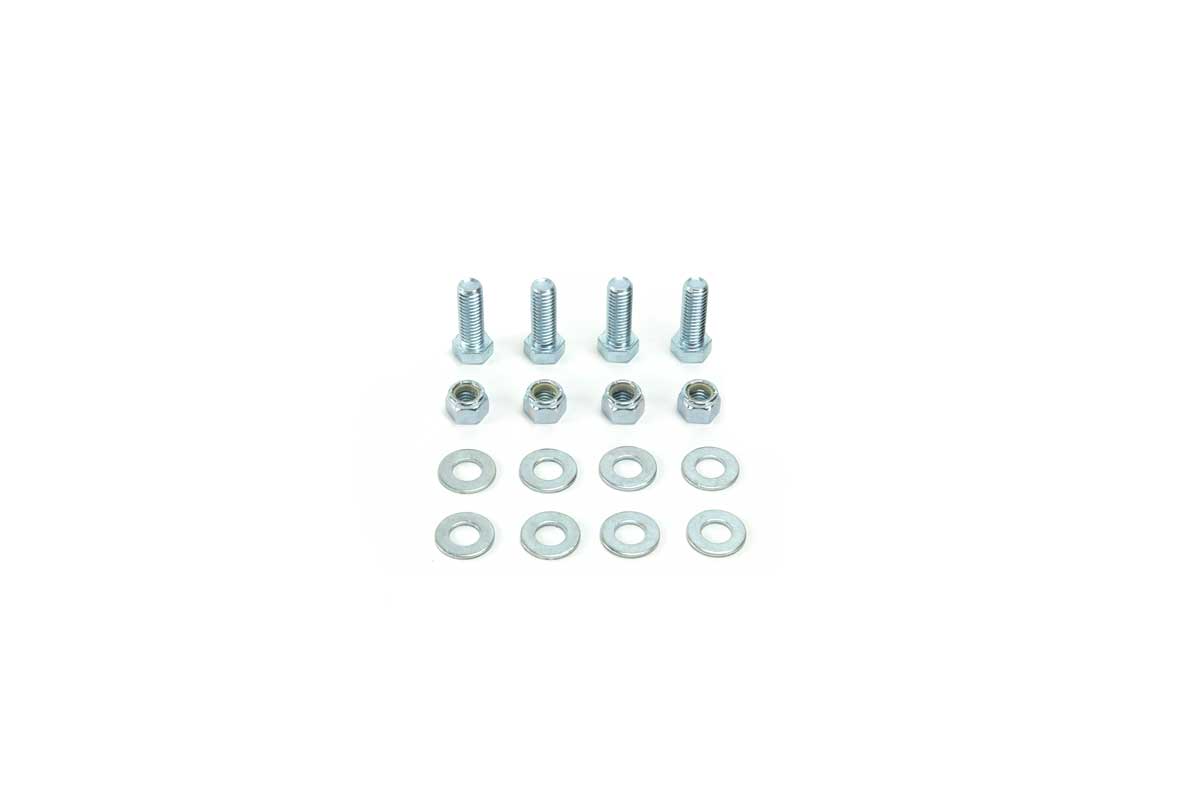

To use the provided 7/16″ hardware it is necessary to enlarge holes in your frame rails with a 1/2″ drill. If you choose to use the stock size 3/8″ hardware, it is strongly recommended to use new Grade #8 fasteners to compensate.
Discover more about the G Force Crossmember product line on these pages-
