Product Information
- Fits Models: C3 Corvette
- Fits Years: 68-80
- Fits Transmissions: TH350, Muncie, Powerglide, T-10, Super T-10, Saginaw, TH200. Note: Will not work with Muncie transmissions which utilize a crossmember mounted shifter linkage.
- We recommend a polyurethane transmission mount. The GMTM is sold separately.
- This crossmember is intended for aftermarket exhaust, if using the factory exhaust there may be clearance issues.
- Fits Models: C3 Corvette
- Fits Years: 68-80
- Fits Transmissions: TH350, Muncie, Powerglide, T-10, Super T-10, Saginaw, TH200. Note: Will not work with Muncie transmissions which utilize a crossmember mounted shifter linkage.
- We recommend a polyurethane transmission mount. The GMTM is sold separately.
- This crossmember is intended for aftermarket exhaust, if using the factory exhaust there may be clearance issues.
G Force and our Partner Brands engineer bold solutions that make installation easier without sacrificing quality. Get more support from G Force.
Our engineers are also car enthusiasts—which makes designing automotive parts second nature. Because we use our products, we know the importance of crafting them with strength and durability. Get more performance from G Force.
Specifications
Weight: 32 LbsShipping Dimensions: 50 × 13 × 6 In
Finish: Black Powder Coated
Mounting Hardware: Bottom-Up Bolts Included. The installer must reuse the long horizontal bolts.
See the G Force Crossmember Overview for more info.

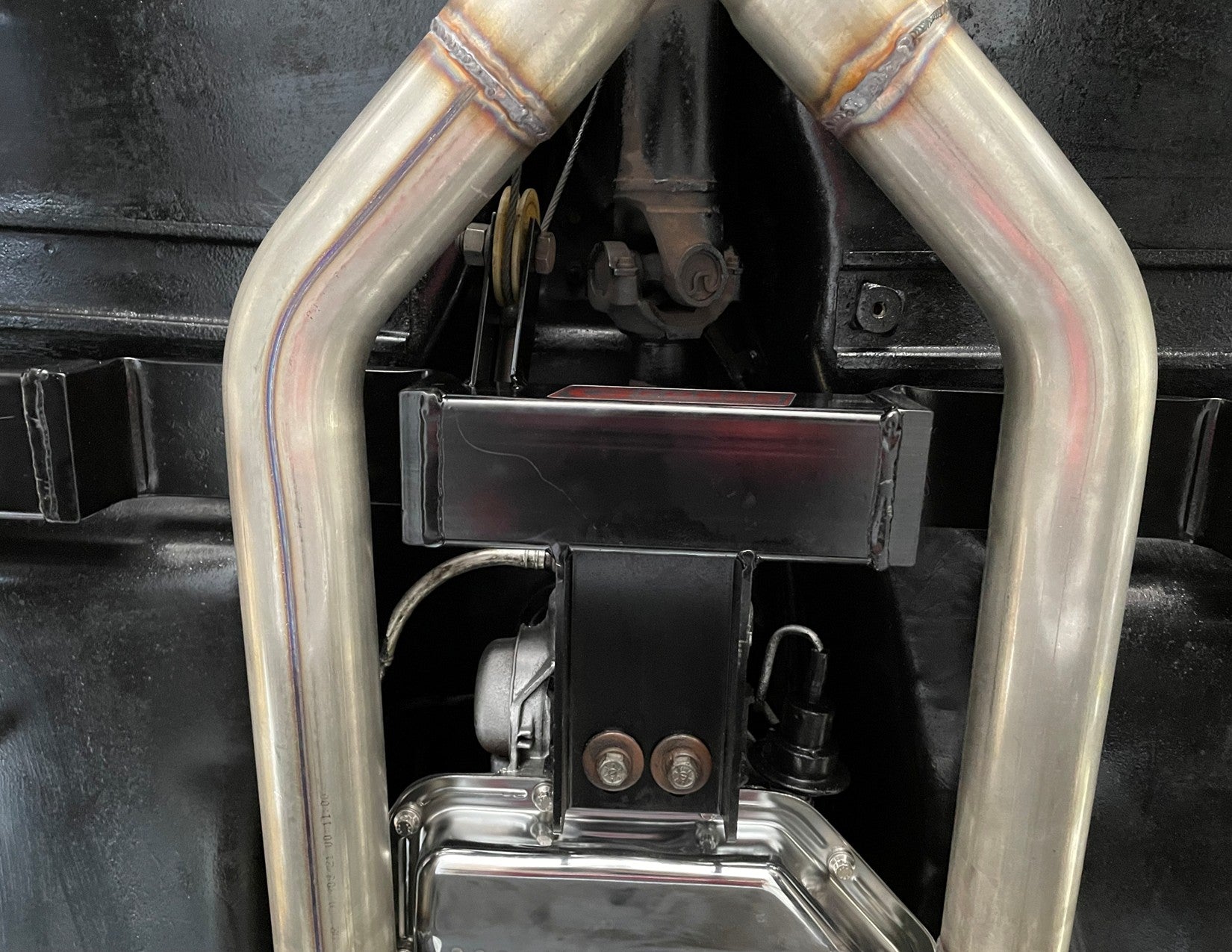

This crossmember is installed with the G Force label facing the rear of the vehicle. However, another determining feature is the crossmember center tube has a bracket welded to the back to accept the factory brake cable pulley.
This crossmember is installed so that the exhaust clearance humps are closed on the top and open on the bottom.See the G Force Crossmember Overview for more info.
This crossmember is installed with the G Force label facing the rear of the vehicle. However, another determining feature is the crossmember center tube which has a 1/2″ drain slot that is positioned on the bottom and on the passenger side next to the hump weldment.
This crossmember is installed so that the exhaust clearance humps are closed on the top and open on the bottom.
To use the provided 7/16″ hardware it is necessary to enlarge holes in your frame rails with a 1/2″ drill. If you choose to use the stock size 3/8″ hardware, it is strongly recommended to use new Grade #8 fasteners to compensate.
