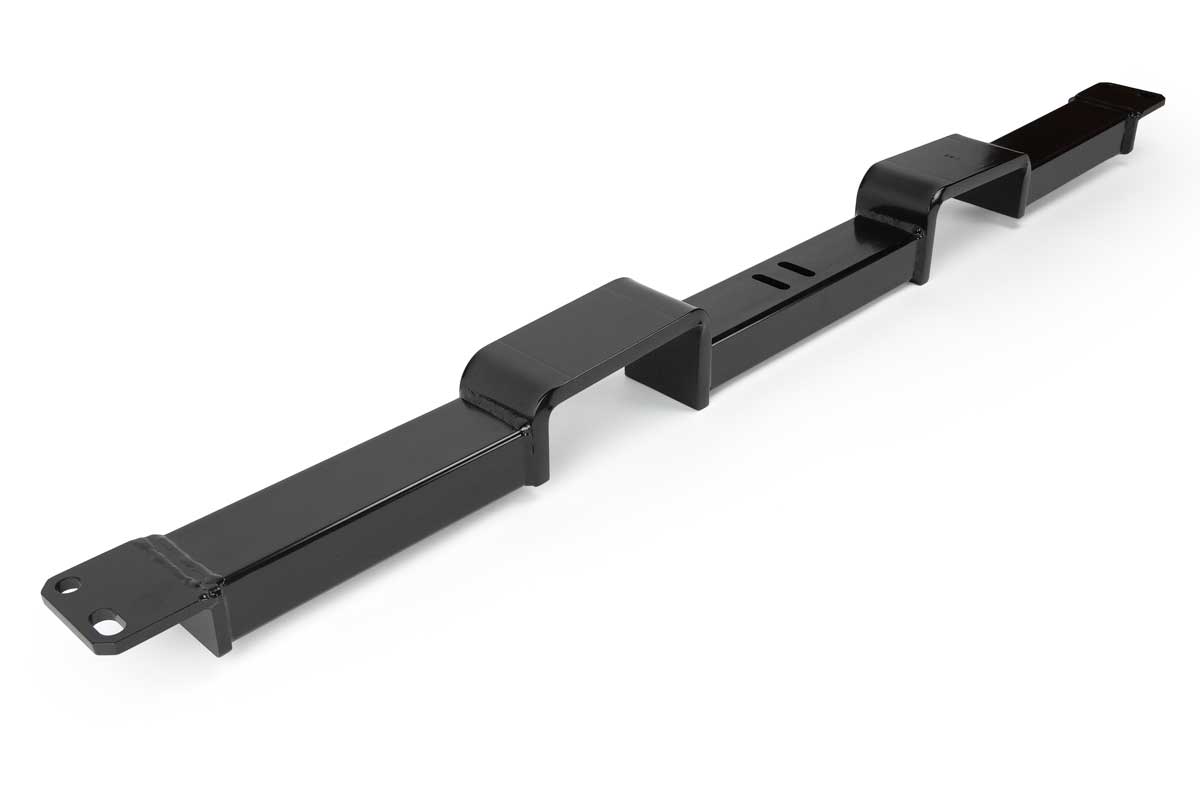

1965-1970 B-Body Transmission Crossmember | G Force — G Force Performance Products
Skip to content

Product Information

Description

  • Fits Models: Bel-Air, Caprice, Impala, Biscayne, Le Sabre, Catalina, Bonneville, Delta 88, Starfire, Delmont 88, Brookwood, Dynamic 88, Executive, Grand Prix, Wildcat, Jetstar 88
  • Fits Years: 65-70
  • Fits Transmissions: TH350, TH200, TH250, Muncie, T10, Super T10, Powerglide, Saginaw.
  • Note: If your car was OEM equipped with a TH400 or has two sets of transmission crossmember mounting brackets on each frame rail, then this crossmember will also accommodate your TH400 short tail or 2004R transmission.
  • For the 1965-1970 frames the distance between the crossmember frame mounting holes is 54". To ensure proper crossmember selection be sure to measure your frame before you order.
  • A new transmission mount is recommended.

  • Fits Models: Bel-Air, Caprice, Impala, Biscayne, Le Sabre, Catalina, Bonneville, Delta 88, Starfire, Delmont 88, Brookwood, Dynamic 88, Executive, Grand Prix, Wildcat, Jetstar 88
  • Fits Years: 65-70
  • Fits Transmissions: TH350, TH200, TH250, Muncie, T10, Super T10, Powerglide, Saginaw.
  • Note: If your car was OEM equipped with a TH400 or has two sets of transmission crossmember mounting brackets on each frame rail, then this crossmember will also accommodate your TH400 short tail or 2004R transmission.
  • For the 1965-1970 frames the distance between the crossmember frame mounting holes is 54". To ensure proper crossmember selection be sure to measure your frame before you order.
  • A new transmission mount is recommended.

G Force and our Partner Brands engineer bold solutions that make installation easier without sacrificing quality. Get more support from G Force.

DOWNLOAD INSTRUCTIONS

Our engineers are also car enthusiasts—which makes designing automotive parts second nature. Because we use our products, we know the importance of crafting them with strength and durability. Get more performance from G Force.

LEARN MORE

Specifications

Weight: 36lbs

Shipping Dimensions: 57 × 11 × 7 In

Finish: Black Powder Coated

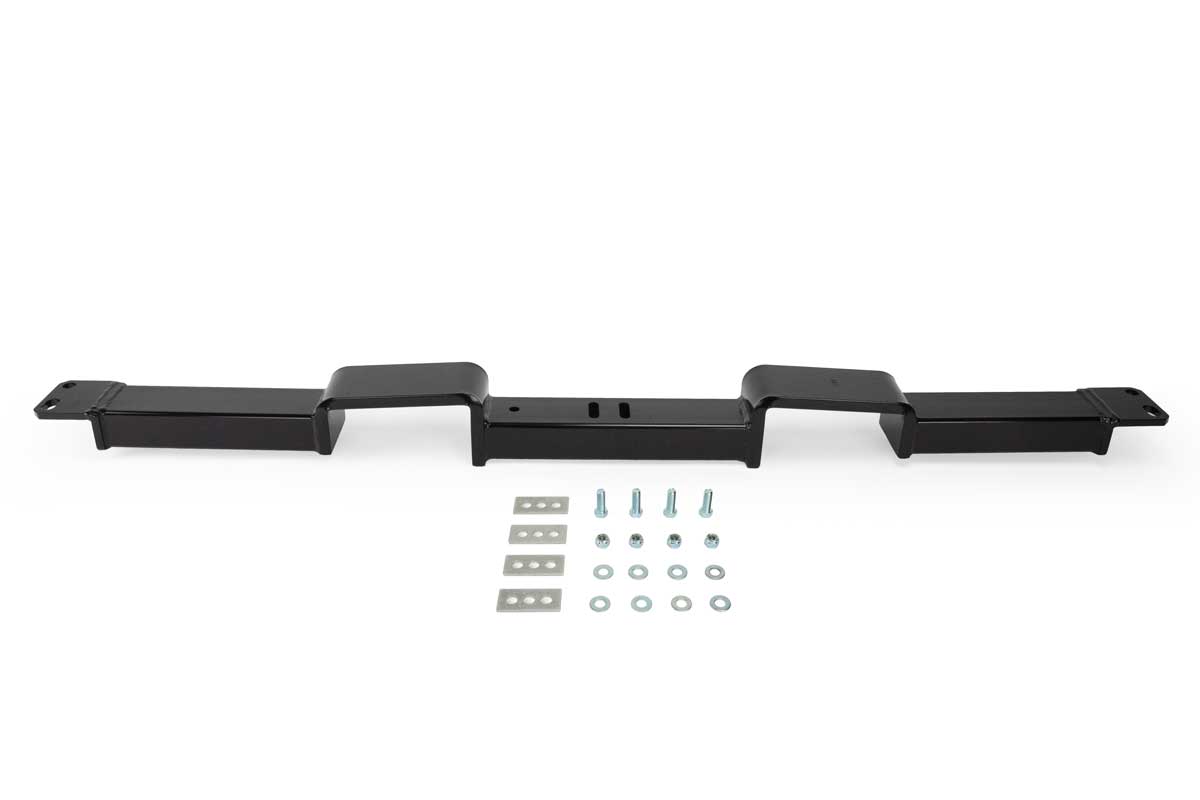

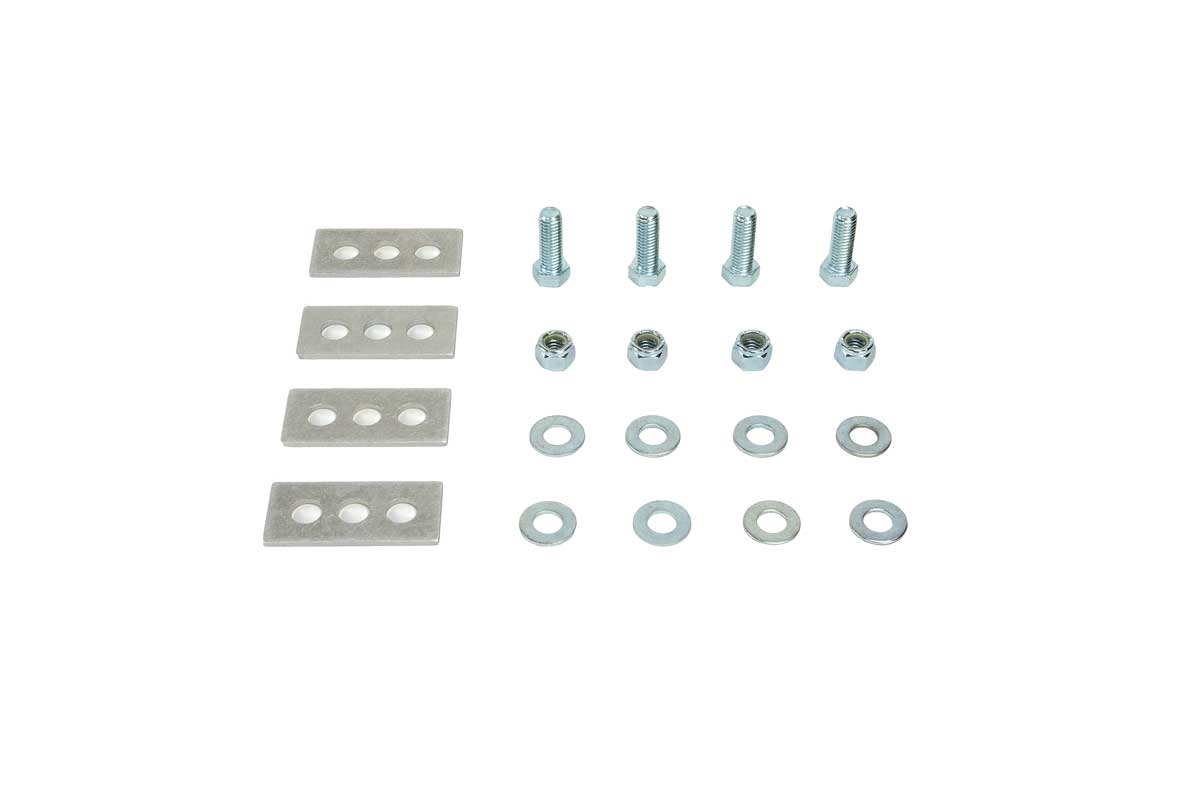

Mounting Hardware: Included

See the G Force Crossmember Overview for more info.

Many G Force Crossmembers utilize the early GM double stud transmission mount configuration, for the increased strength aspects. Should your vehicle originally be equipped with a single centered stud transmission mount, simply replace your transmission mount with the early style.

To use the provided 7/16″ hardware it is necessary to enlarge holes in your frame rails with a 1/2″ drill. If you choose to use the stock size 3/8″ hardware, it is strongly recommended to use new Grade #8 fasteners to compensate.

Some minor contact between the floorplan and the crossmember may occur due to body bushing settling and deterioration, or a bowed floor pan. Usually, this is not a problem. A hydraulic floor jack with a wood cushion will correct a bowed floor.

Discover more about the G Force Crossmember product line on these pages-

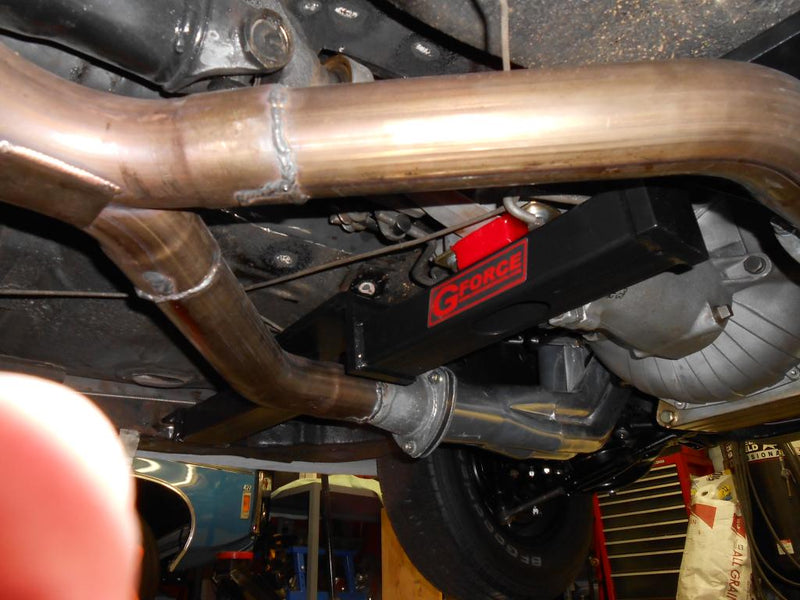

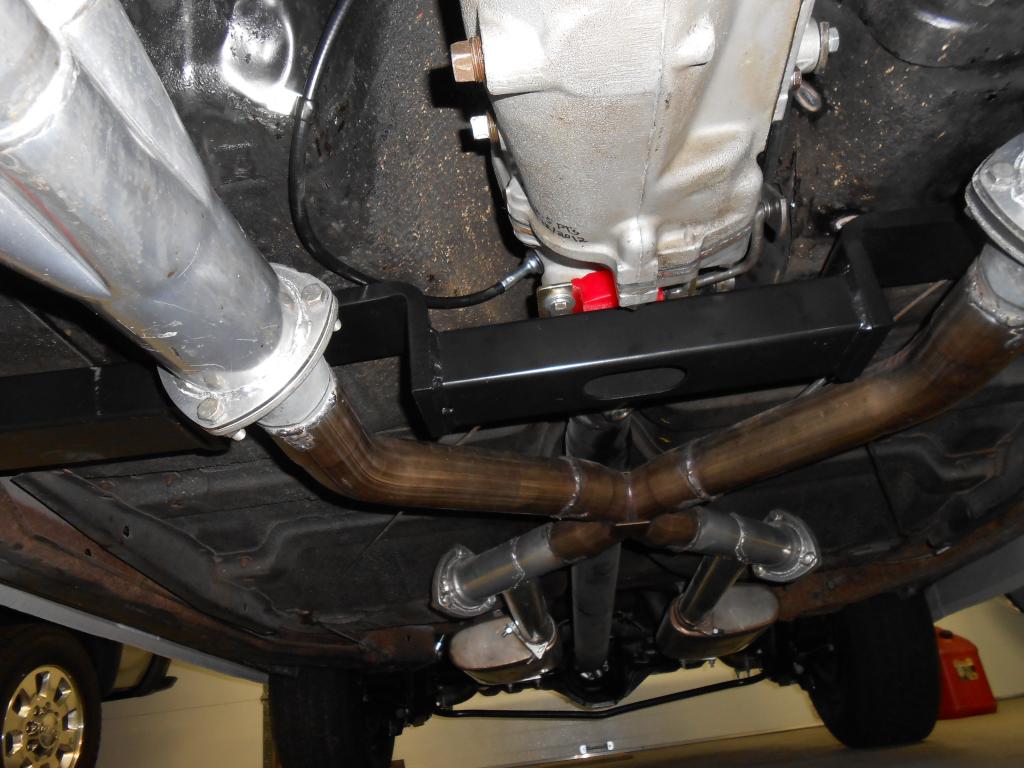

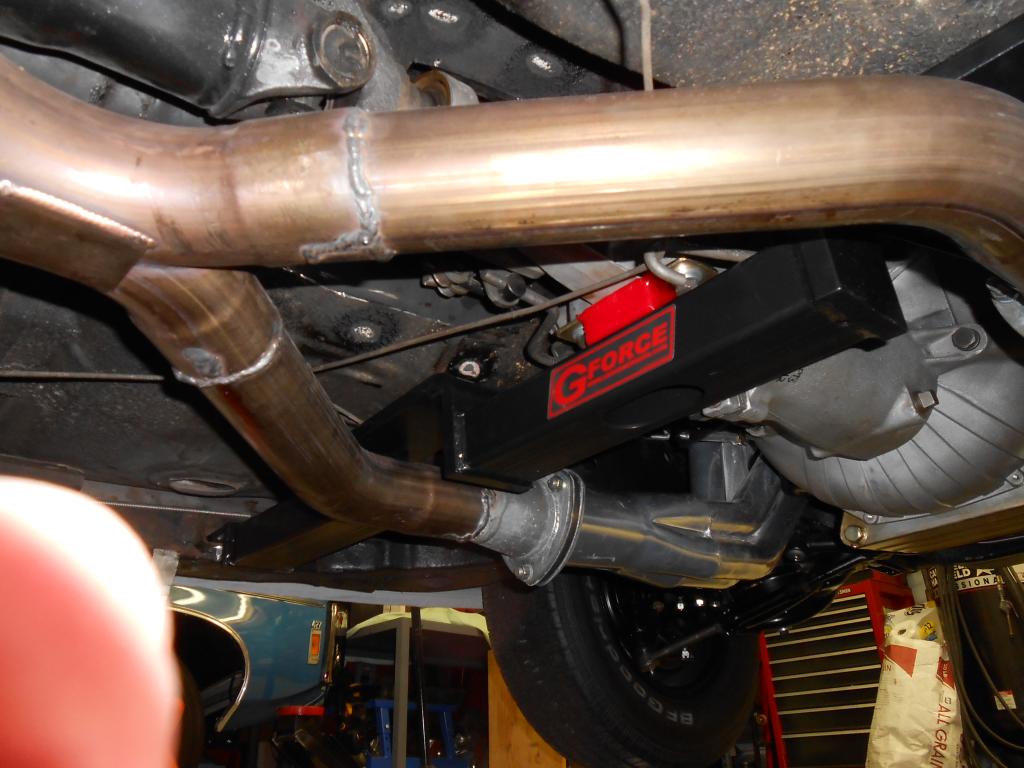

Customer Project Photos
