Product Information
- Fits Models: 442, Cutlass, F85, GTO, LeMans, Tempest, GS, Skylark, Chevelle, El Camino, Malibu, Monte Carlo, Special, Sport Wagon, Vista Cruiser, Grand Prix.
- Fits Years: 64-72
- Fits Transmissions:
1964-1967: 2004R, TH400 Short Tail
1968-1972: 4L80E, 4L85E - Will accommodate 4L80E in some 1967's that have 8 crossmember holes on each side of the frame.
- We recommend a polyurethane transmission mount. The GMTM is sold separately.
- For 64-72 Hardtops the distance between the crossmember frame mounting holes is 53-5/8". To ensure proper transmission crossmember selection be sure to measure your frame before you order.
- Fits Models: 442, Cutlass, F85, GTO, LeMans, Tempest, GS, Skylark, Chevelle, El Camino, Malibu, Monte Carlo, Special, Sport Wagon, Vista Cruiser, Grand Prix.
- Fits Years: 64-72
- Fits Transmissions:
1964-1967: 2004R, TH400 Short Tail
1968-1972: 4L80E, 4L85E - Will accommodate 4L80E in some 1967's that have 8 crossmember holes on each side of the frame.
- We recommend a polyurethane transmission mount. The GMTM is sold separately.
- For 64-72 Hardtops the distance between the crossmember frame mounting holes is 53-5/8". To ensure proper transmission crossmember selection be sure to measure your frame before you order.
G Force and our Partner Brands engineer bold solutions that make installation easier without sacrificing quality. Get more support from G Force.
Our engineers are also car enthusiasts—which makes designing automotive parts second nature. Because we use our products, we know the importance of crafting them with strength and durability. Get more performance from G Force.
Specifications
Weight: 37 lbsShipping Dimensions: 57 X 11 X 6 In
Finish: Black Powder Coated
Mounting Hardware: Included
See the G Force Crossmember Overview for more info.

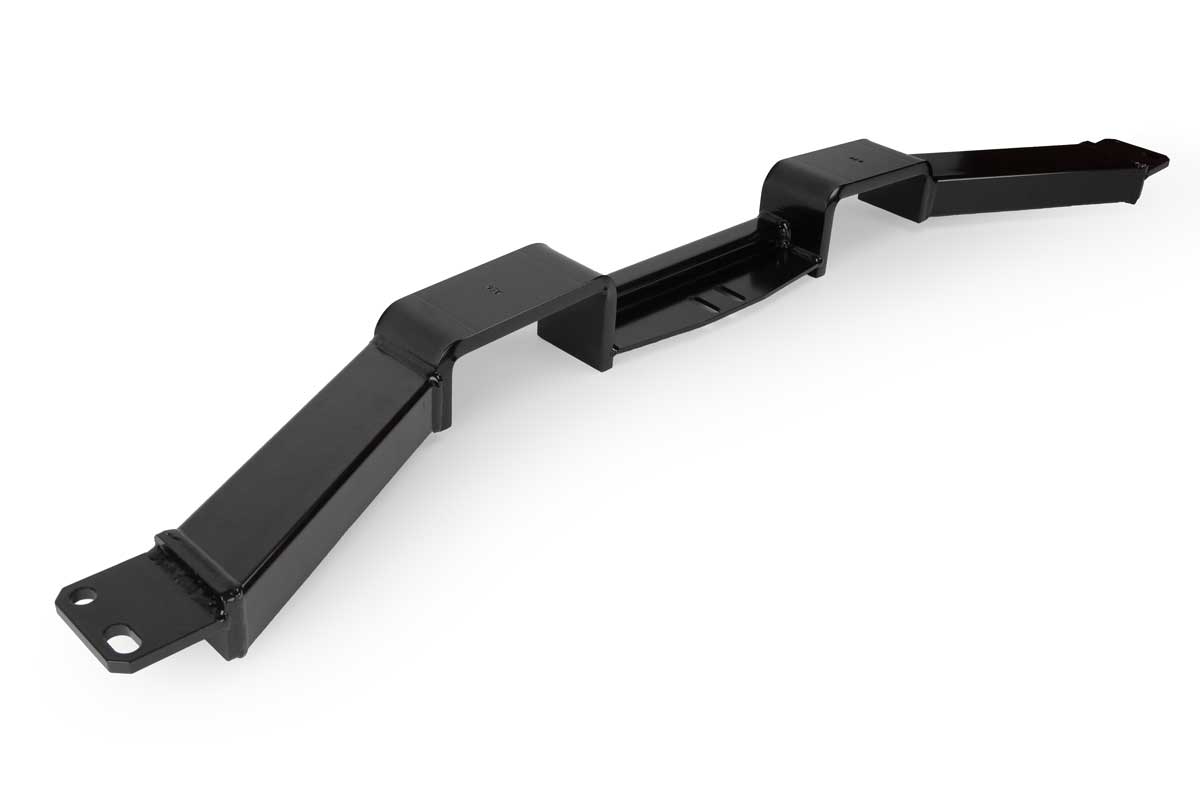

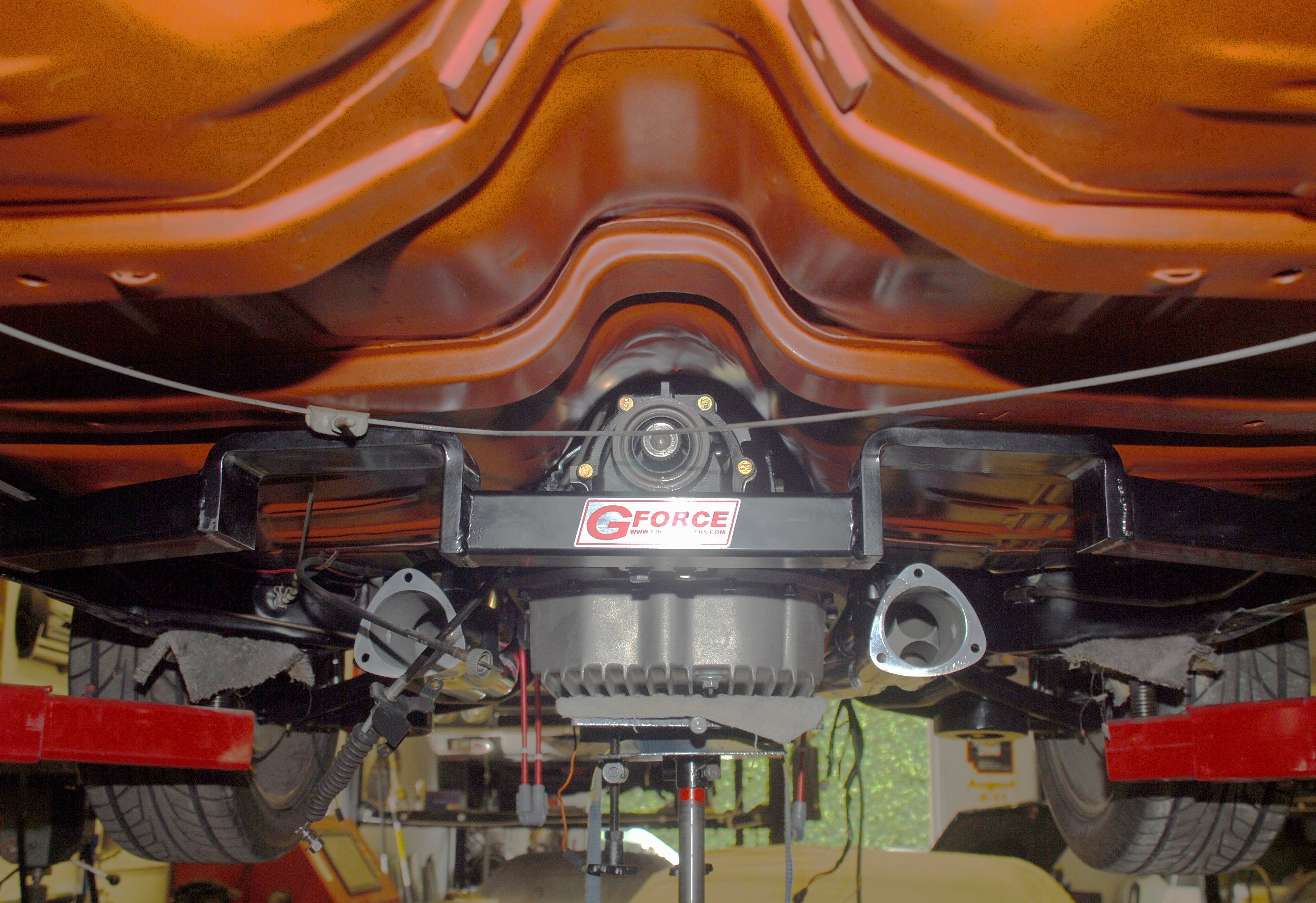

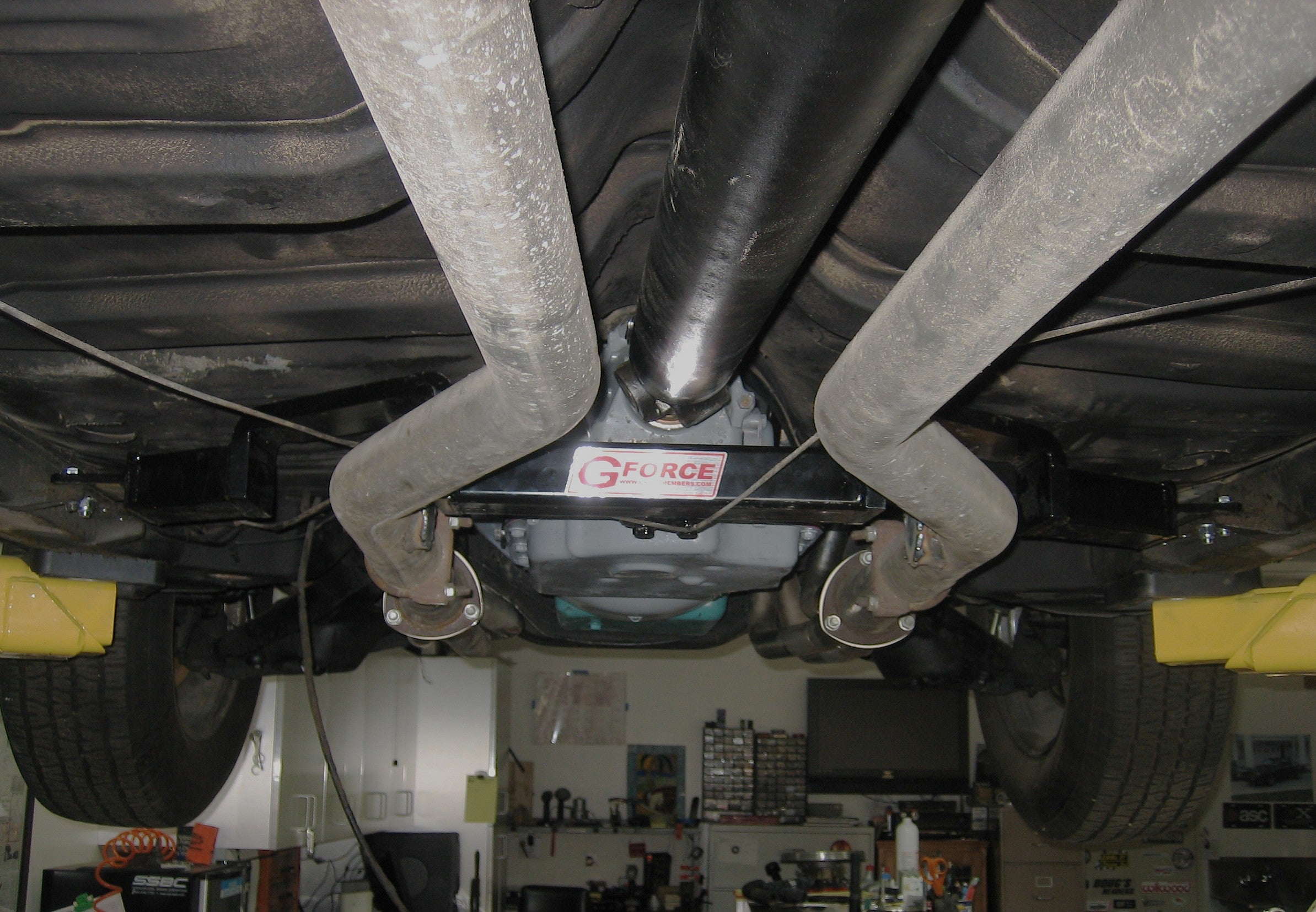

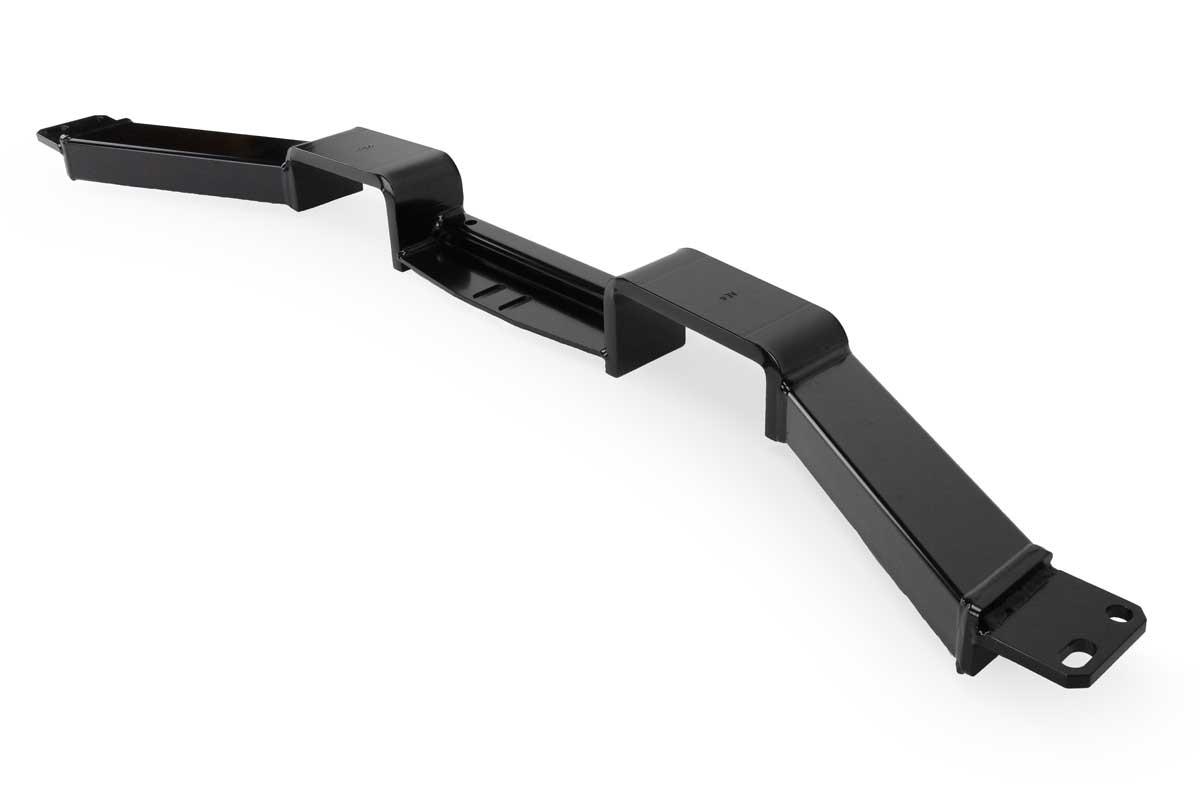

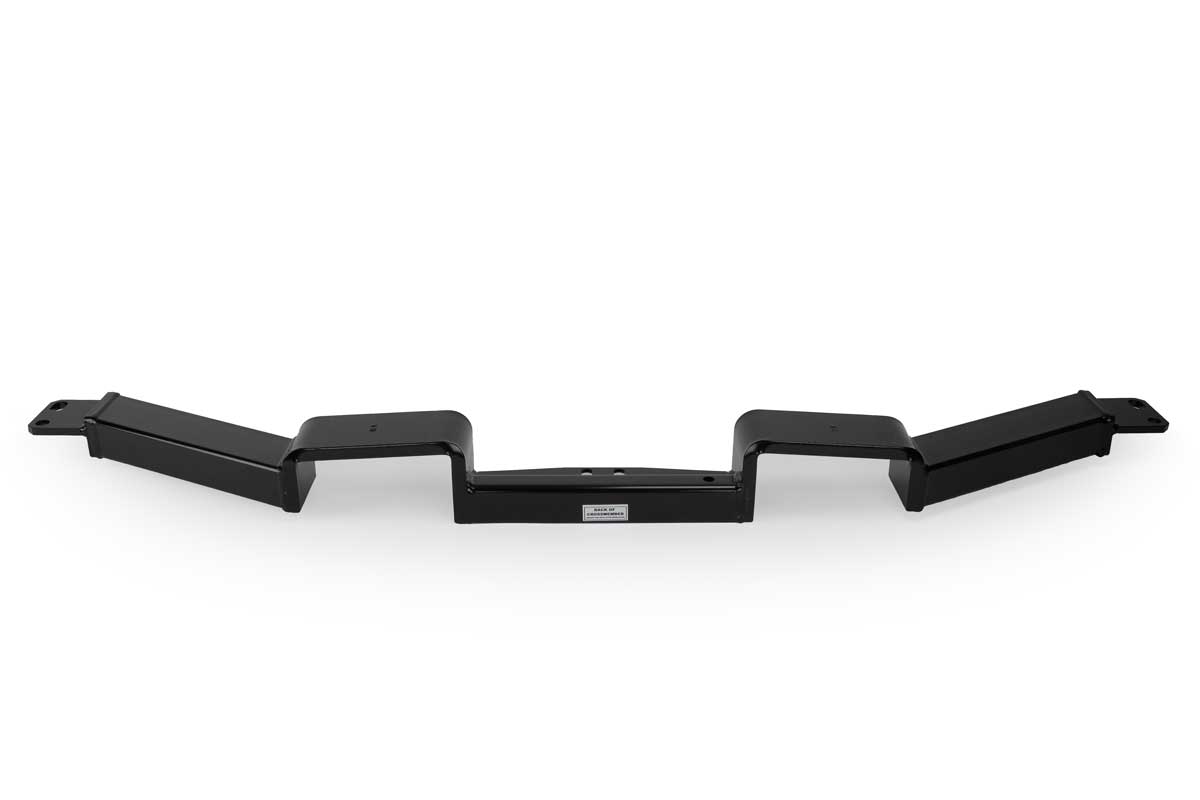

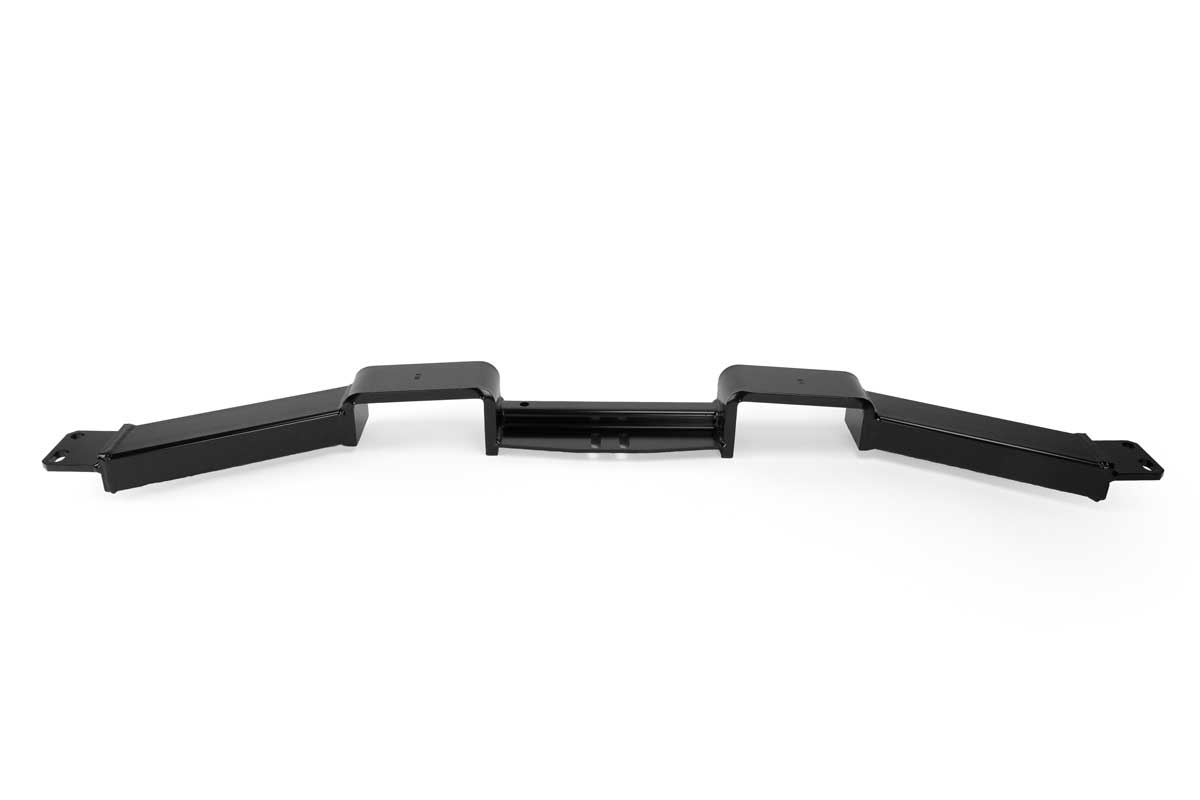

This transmission crossmember is installed with the transmission mounting tabs positioned towards the front of the car and so that the exhaust clearance humps are closed on the top and open on the bottom.

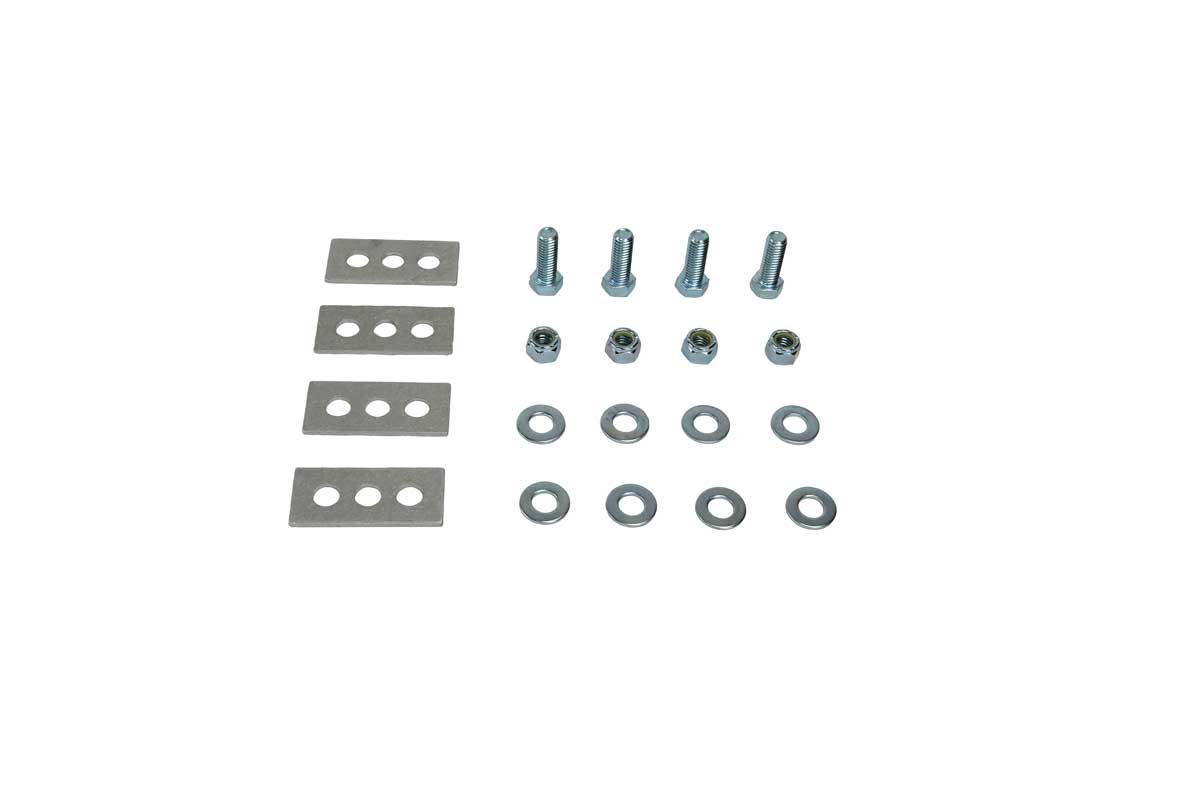

If you need them, aluminum spacers are provided to customize the height of your transmission mount. Position them between the crossmember and your transmission mount. Use longer bolts to insure full engagement into transmission mount. Some applications will not require any spacers.
Some vehicles of this generation are equipped with a transmssion crossmember that bolts directly to the frame rail, while others are equipped with crossmembers that utilize tab that sits on the frame rails and are embedded with a rubber liner. The RCAE-4 bolts directly to the frame rails using the factory frame holes. Do not use the rubber liner. Instead, use the provided 7/16″ hardware and enlarge holes in your frame rails with a 1/2″ drill-bit. If you choose to use the stock size 3/8″ hardware, it is strongly recommended to use new Grade #8 fasteners to compensate.
