Product Information

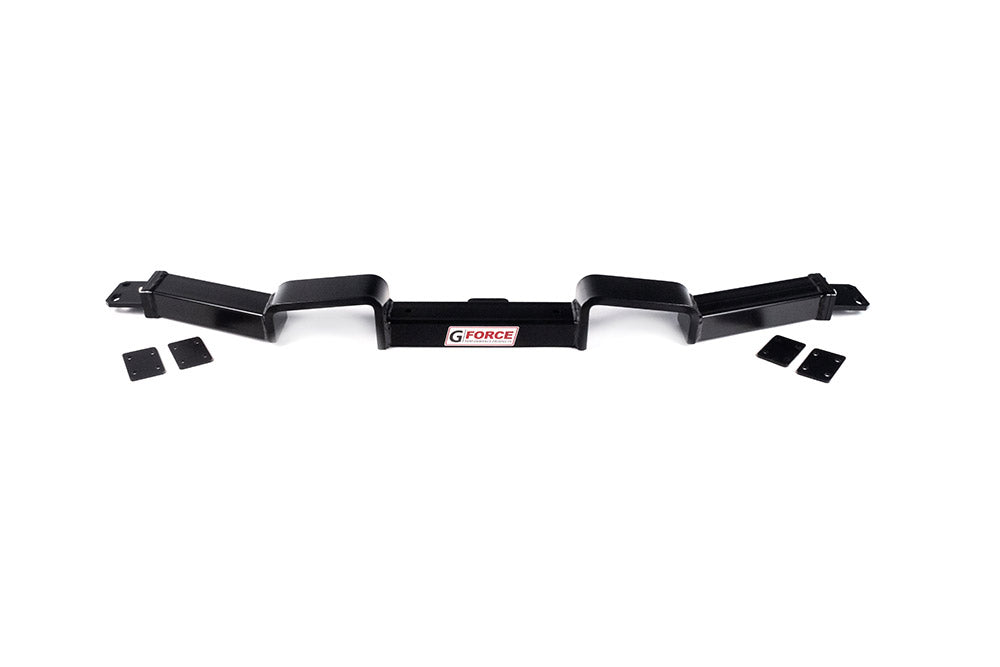

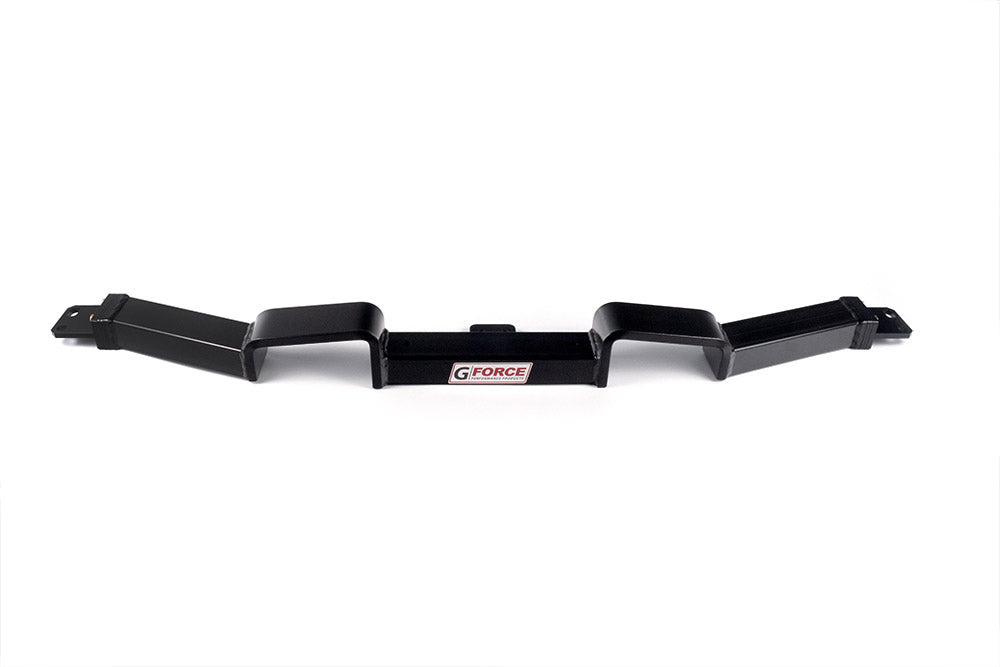

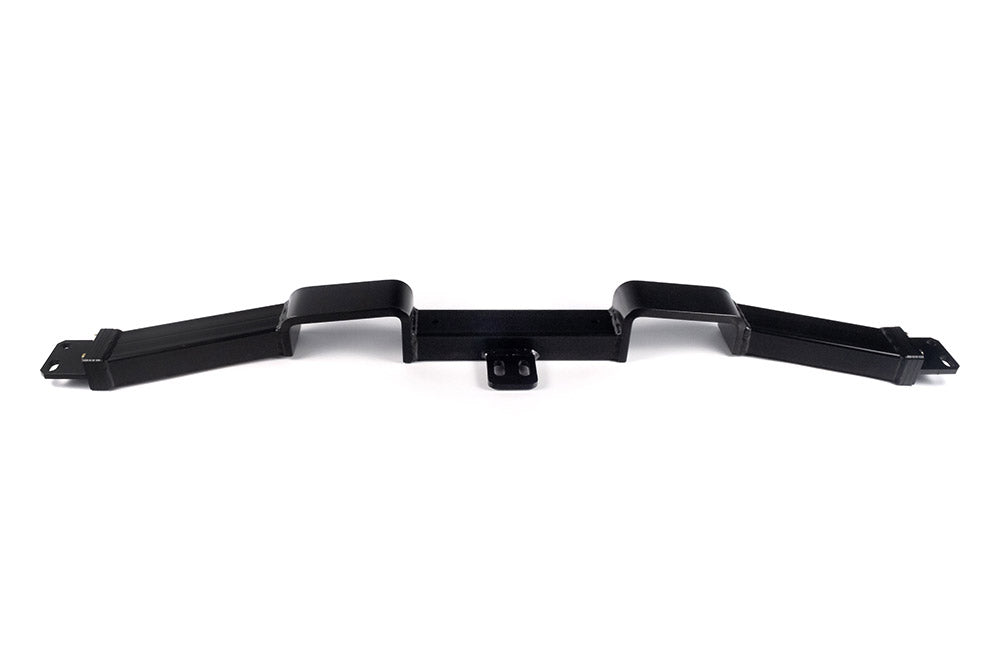

New Adjustable Width Crossmember
- This crossmember is designed for A-Body cars frames measuring wider than the standard 53-5/8" mounting hole center to hole center.
- It has removable end-tabs and comes with four 3/16" thick shims to bring the mounting width to a max of 54-3/8". If your frame measures wider than this dimension, give us a call to discuss further options.
- Fits Models: Chevelle, El Camino, Malibu, Monte Carlo, GS, Skylark, 442, Cutlass, F85, Grand Prix, GTO, LeMans, Tempest, Special, Sport Wagon, Vista Cruiser
- Fits Years: 64-67 and 68-72
- 1964-1972 Hardtops Only. Will not fit convertibles or El Caminos with boxed frame.
- Fits Transmissions: 1964-1967 - TH350, Muncie, Powerglide, T-10, Super-T-10, Saginaw, TH200, TH250, 700R4, 4L60, 4L60E, GM T-5, TREMEC TKO-500, and TKO-600. 1968-1972 - TH350, Muncie, Powerglide, T-10, Super-T-10, Saginaw, TH200, TH250, 700R4, 4L60, 4L60E, GM T-5, TREMEC, TKO-500, TKO-600, 2004R, and TH400 Short Tail.
- We recommend a polyurethane transmission mount. The GMTM is sold separately.
This crossmember is intended for the rare instances of a wider frame seen on some early A-Body Cars.
New Adjustable Width Crossmember
- This crossmember is designed for A-Body cars frames measuring wider than the standard 53-5/8" mounting hole center to hole center.
- It has removable end-tabs and comes with four 3/16" thick shims to bring the mounting width to a max of 54-3/8". If your frame measures wider than this dimension, give us a call to discuss further options.
- Fits Models: Chevelle, El Camino, Malibu, Monte Carlo, GS, Skylark, 442, Cutlass, F85, Grand Prix, GTO, LeMans, Tempest, Special, Sport Wagon, Vista Cruiser
- Fits Years: 64-67 and 68-72
- 1964-1972 Hardtops Only. Will not fit convertibles or El Caminos with boxed frame.
- Fits Transmissions: 1964-1967 - TH350, Muncie, Powerglide, T-10, Super-T-10, Saginaw, TH200, TH250, 700R4, 4L60, 4L60E, GM T-5, TREMEC TKO-500, and TKO-600. 1968-1972 - TH350, Muncie, Powerglide, T-10, Super-T-10, Saginaw, TH200, TH250, 700R4, 4L60, 4L60E, GM T-5, TREMEC, TKO-500, TKO-600, 2004R, and TH400 Short Tail.
- We recommend a polyurethane transmission mount. The GMTM is sold separately.
This crossmember is intended for the rare instances of a wider frame seen on some early A-Body Cars.
G Force and our Partner Brands engineer bold solutions that make installation easier without sacrificing quality. Get more support from G Force.
Our engineers are also car enthusiasts—which makes designing automotive parts second nature. Because we use our products, we know the importance of crafting them with strength and durability. Get more performance from G Force.
Specifications
Weight: 37 lbsShipping Dimensions: 57 X 11 X 5 In
Finish: Black Powder Coated
Mounting Hardware: Included
See the G Force Crossmember Overview for more info.

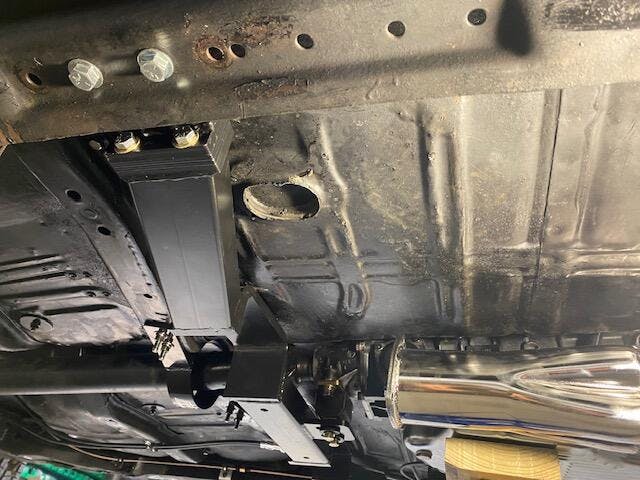

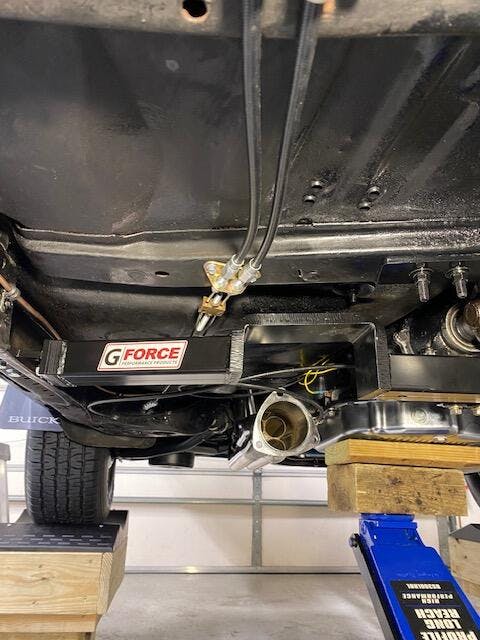

This transmission crossmember is installed with transmission mounting tabs positioned towards front of car, and exhaust double humps are on the top, next to floor pan.
If you need them, aluminum spacers are provided to customize the height of your transmission mount. Position them between the crossmember and your GM three-hole transmission mount. Use longer bolts to insure full engagement into transmission mount. Some applications will not require any spacers.
Some vehicles of this generation are equipped with a crossmember that bolt directly to the frame rail, while others are equipped with transmission crossmembers that utilize tab that sits on the frame rails and are embedded with a rubber liner. The RCAE bolts directly to the frame rails using the factory frame holes. Do not use the rubber liner. Instead, use the provided 7/16″ hardware and enlarge holes in your frame rails with a 1/2″ drill-bit. If you choose to use the stock size 3/8″ hardware, it is strongly recommended to use new Grade #8 fasteners to compensate.
