LS To AR5 Transmission Adapter Kit

LS To AR5 Transmission Adapter Kit | GF-LSAR5-KIT

by G Force Performance Products
SKU GF-LSAR5-KIT
$279.00

Notify me when back in stock

Product Information

Description

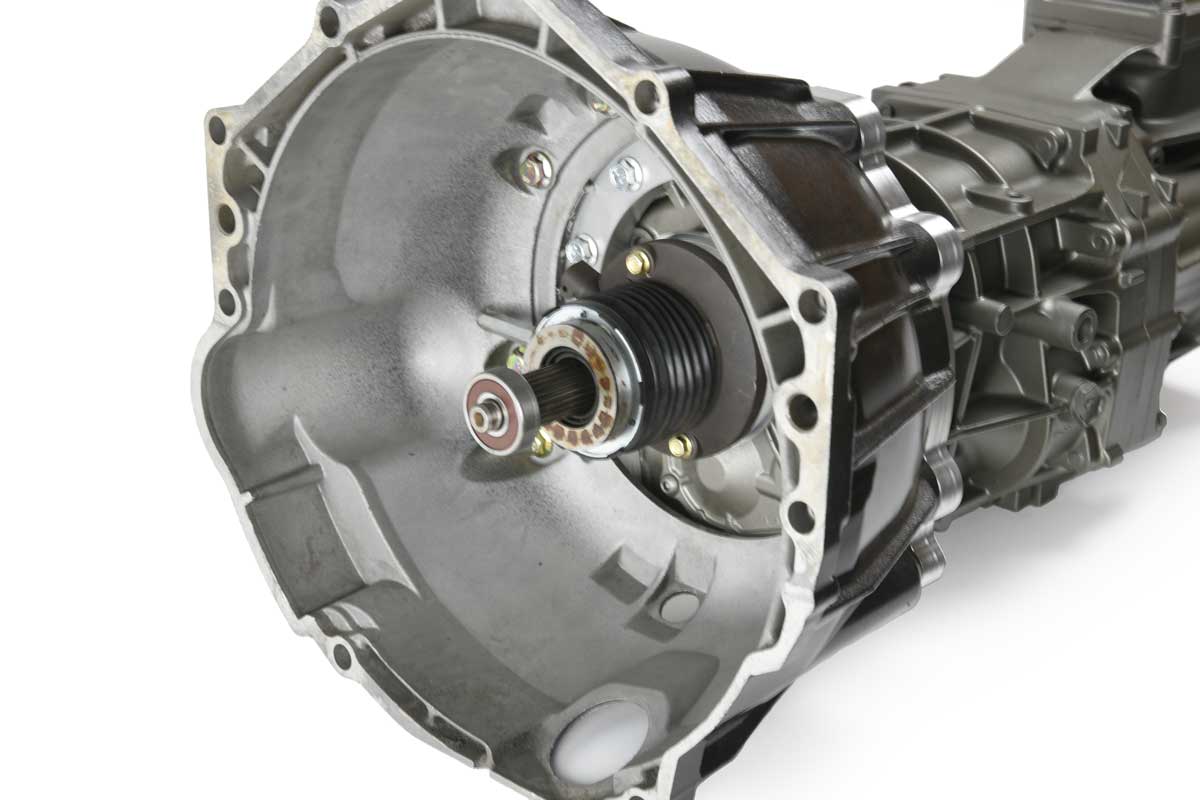

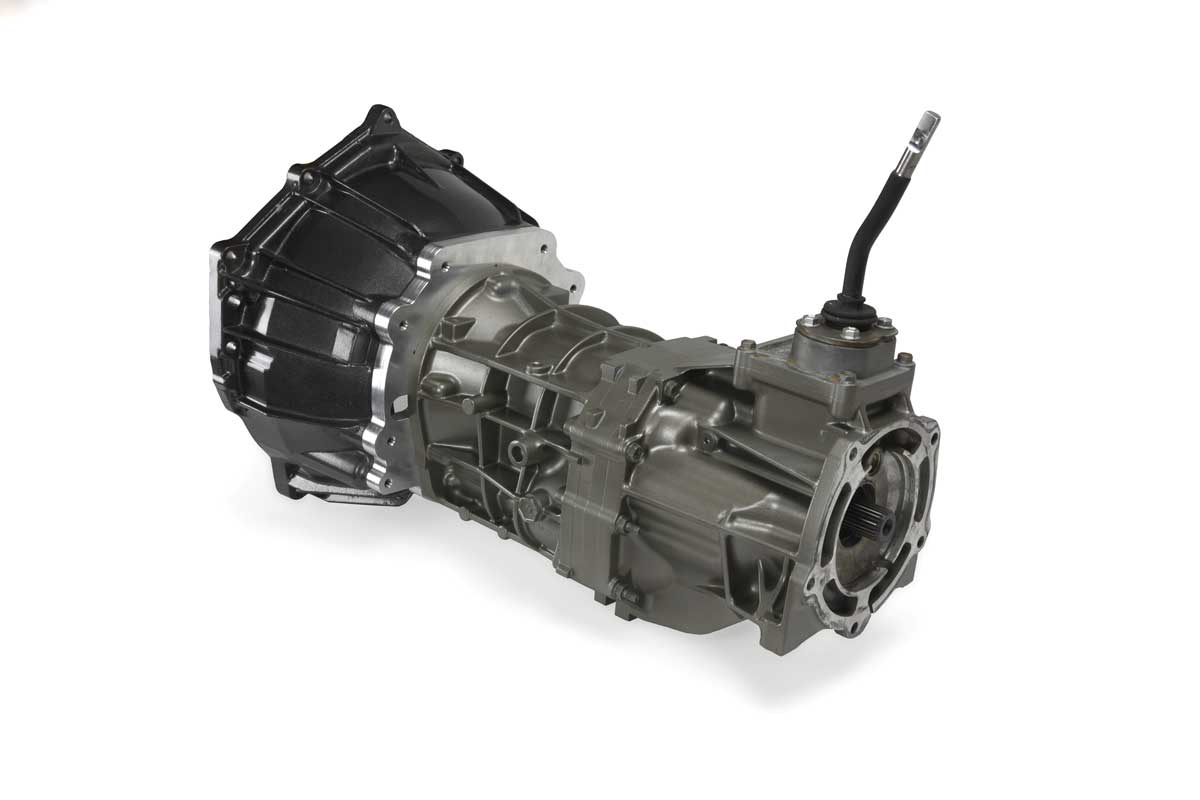

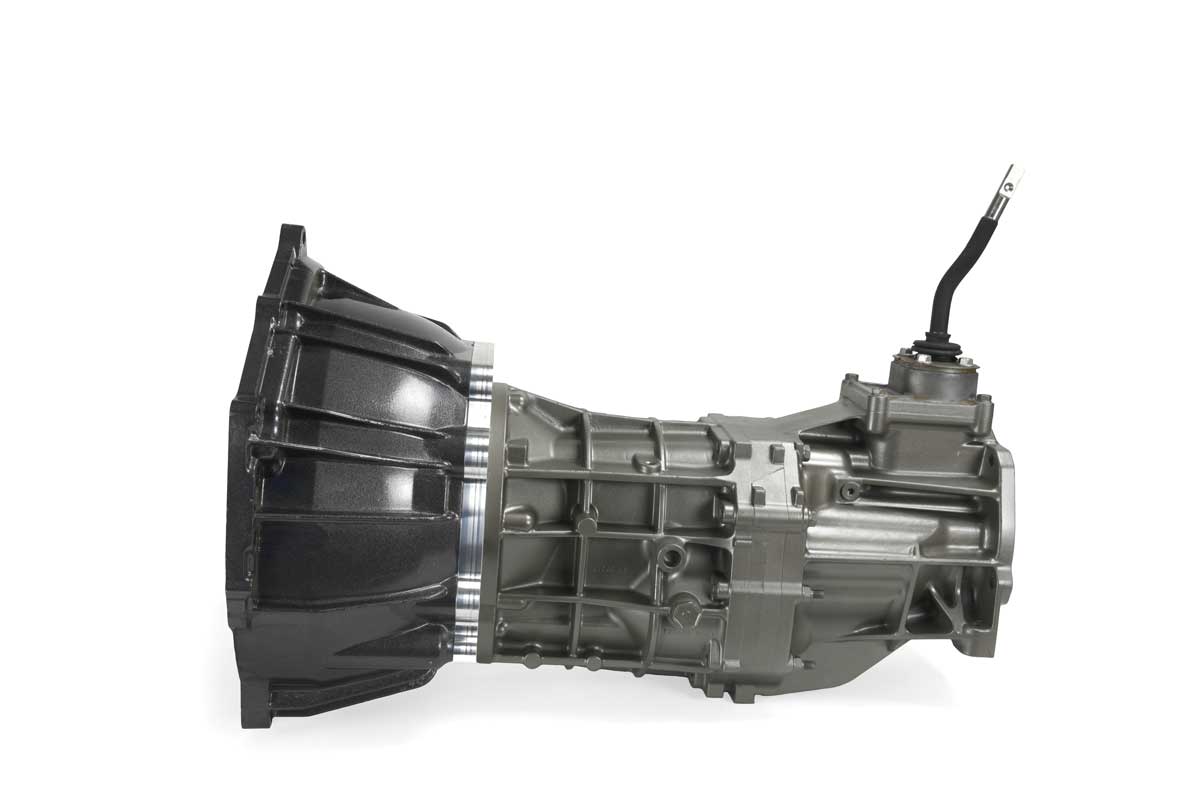

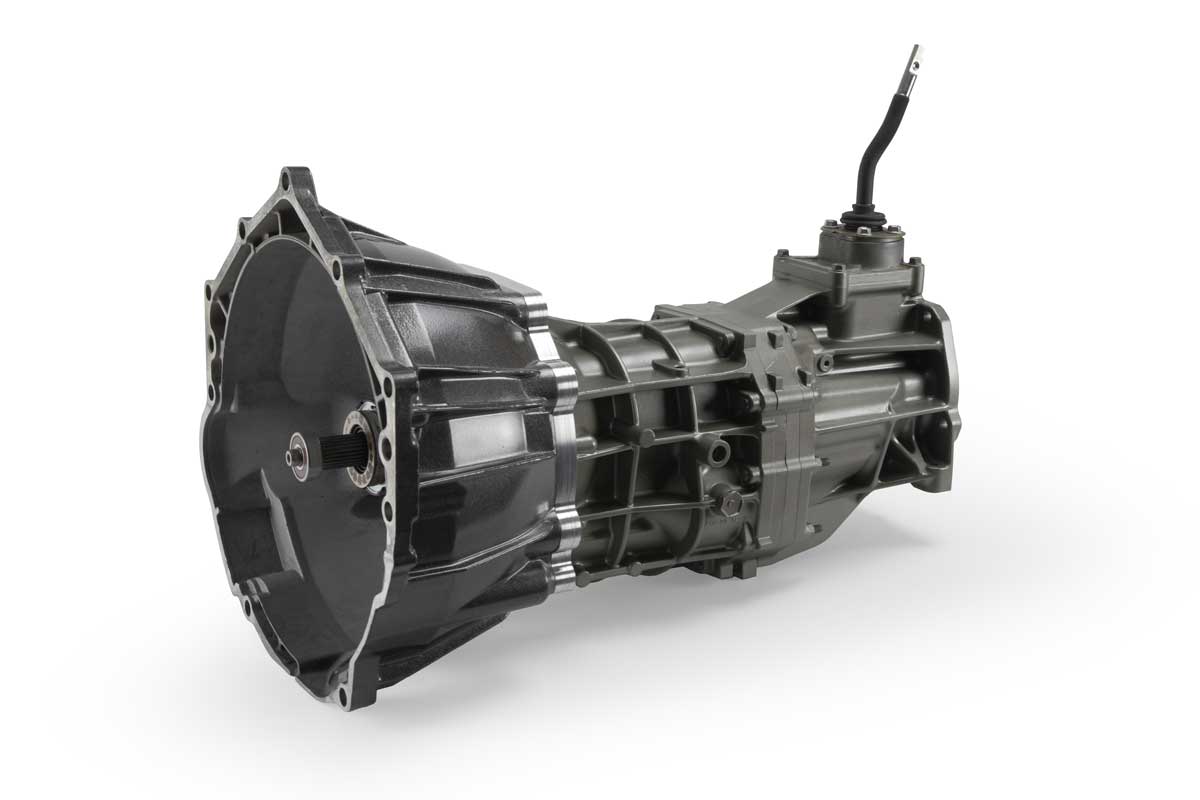

  • Mate your Aisin AR5 5-speed manual transmission to any short-crank LS Gen 3 or Gen 4 engine utilizing this G Force Adapter kit
  • Designed to be used with an LS Style 4L60e bellhousing (not included)

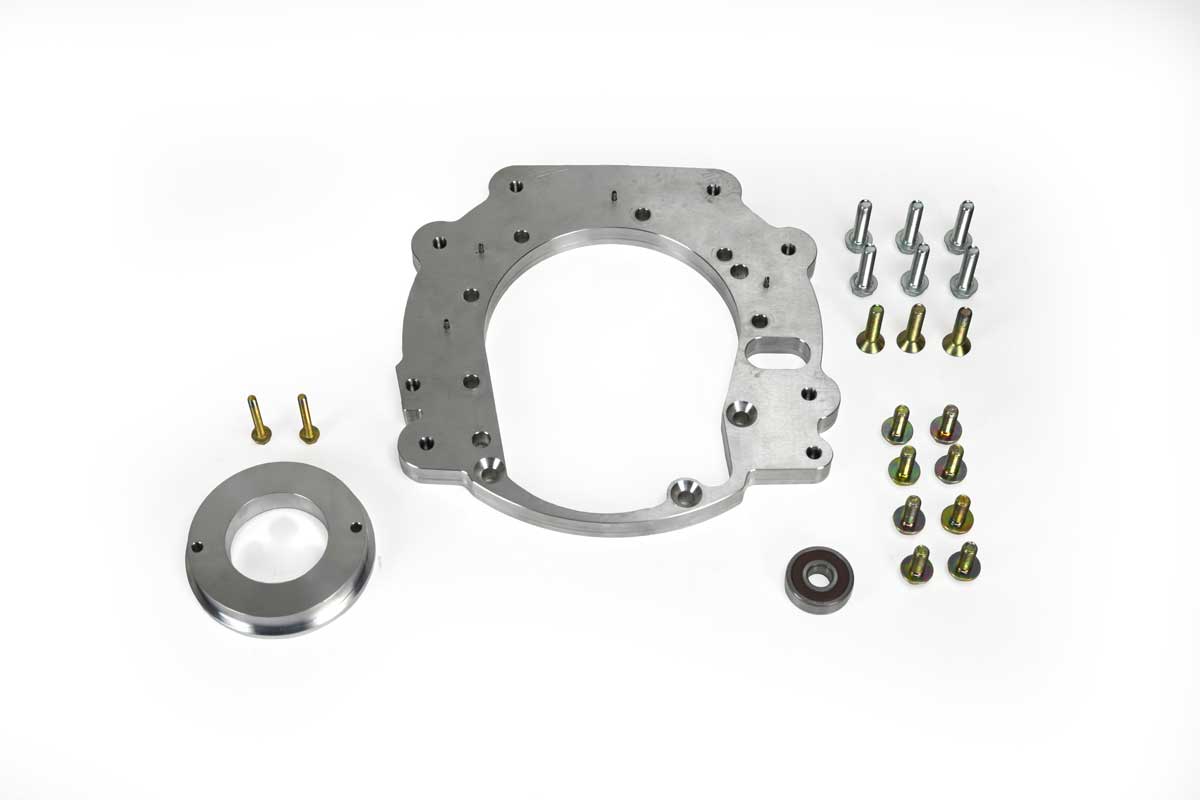

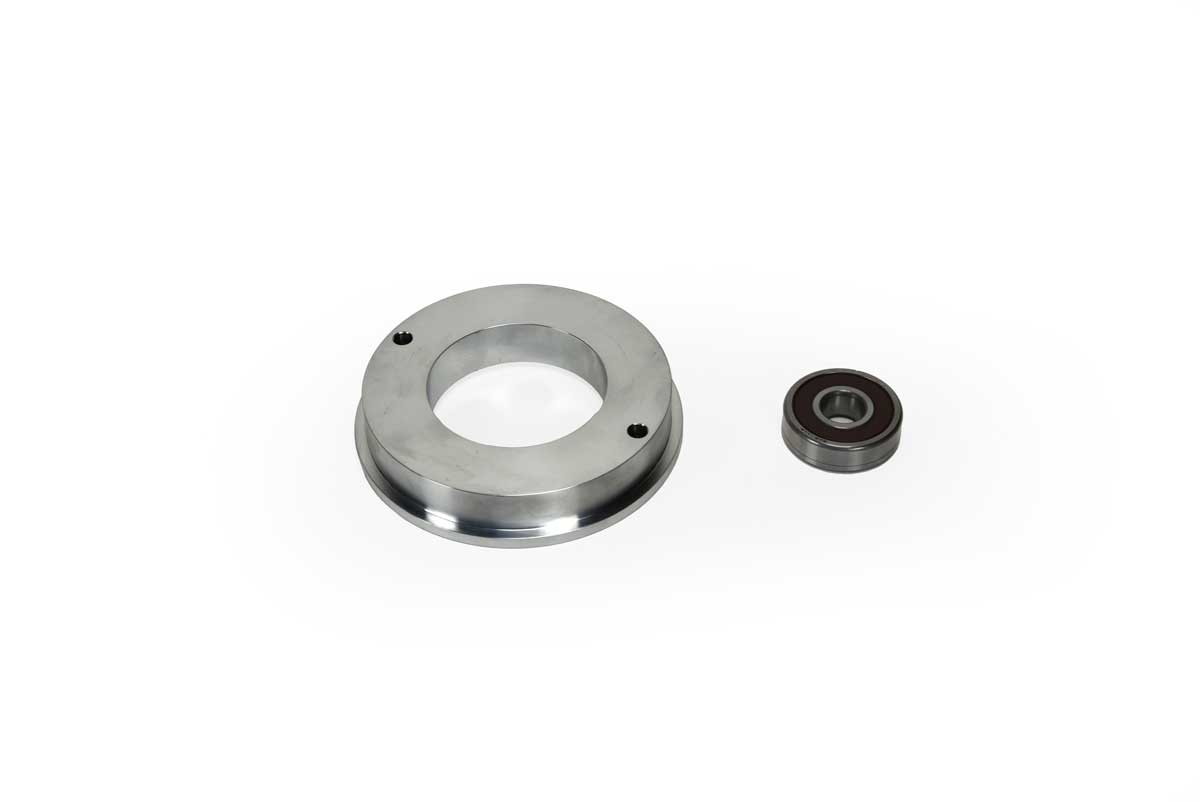

  • Comes with the following:

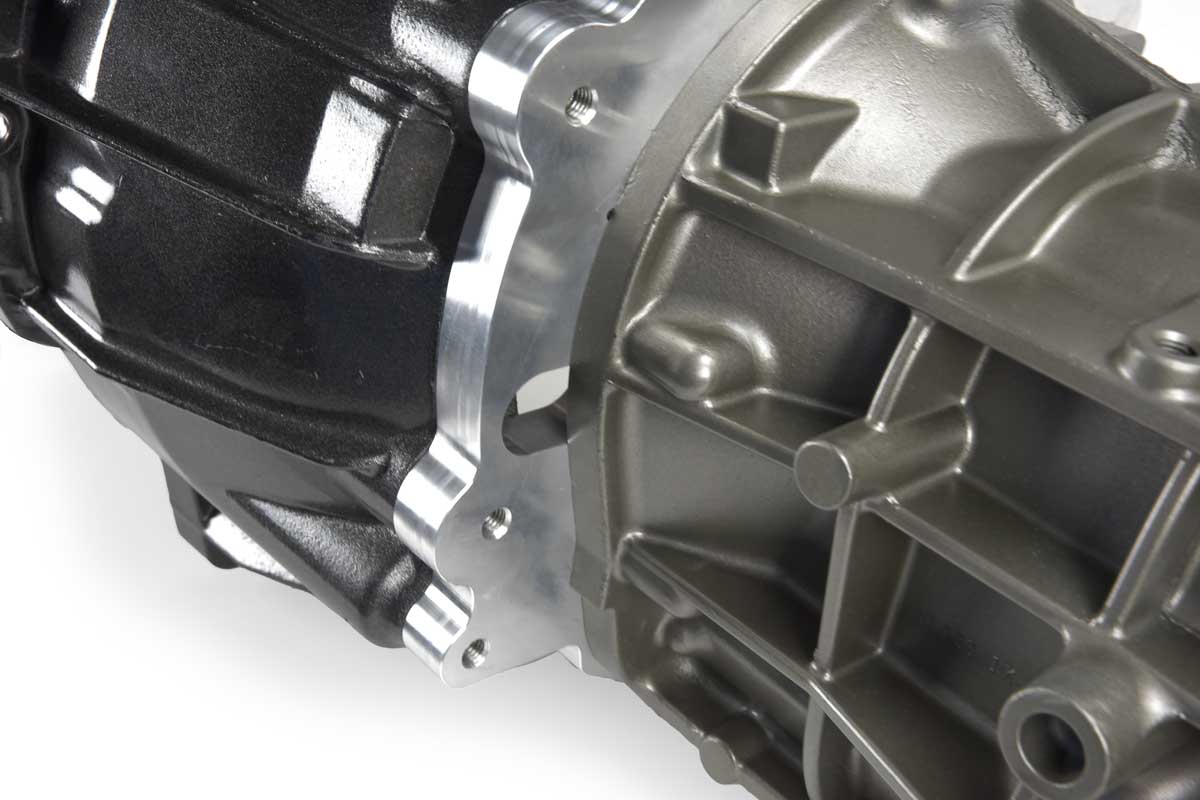

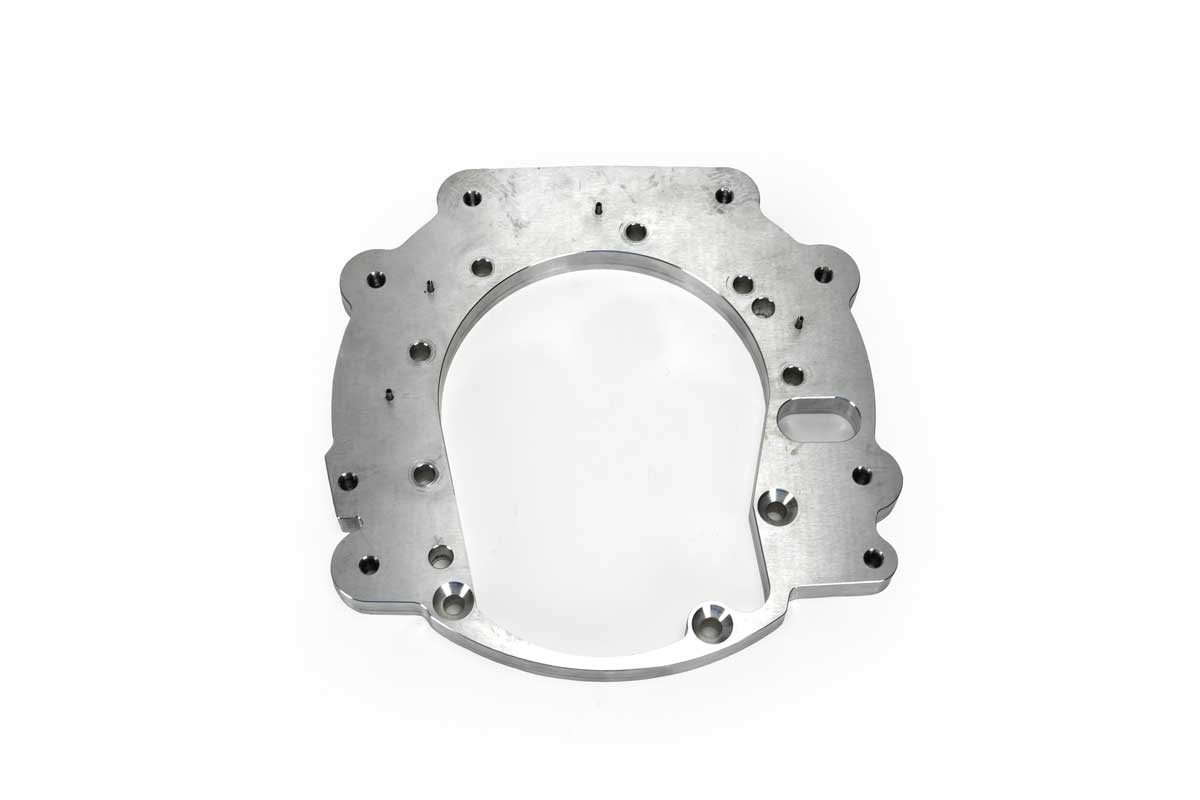

    • 1- G Force Bellhousing Adapter

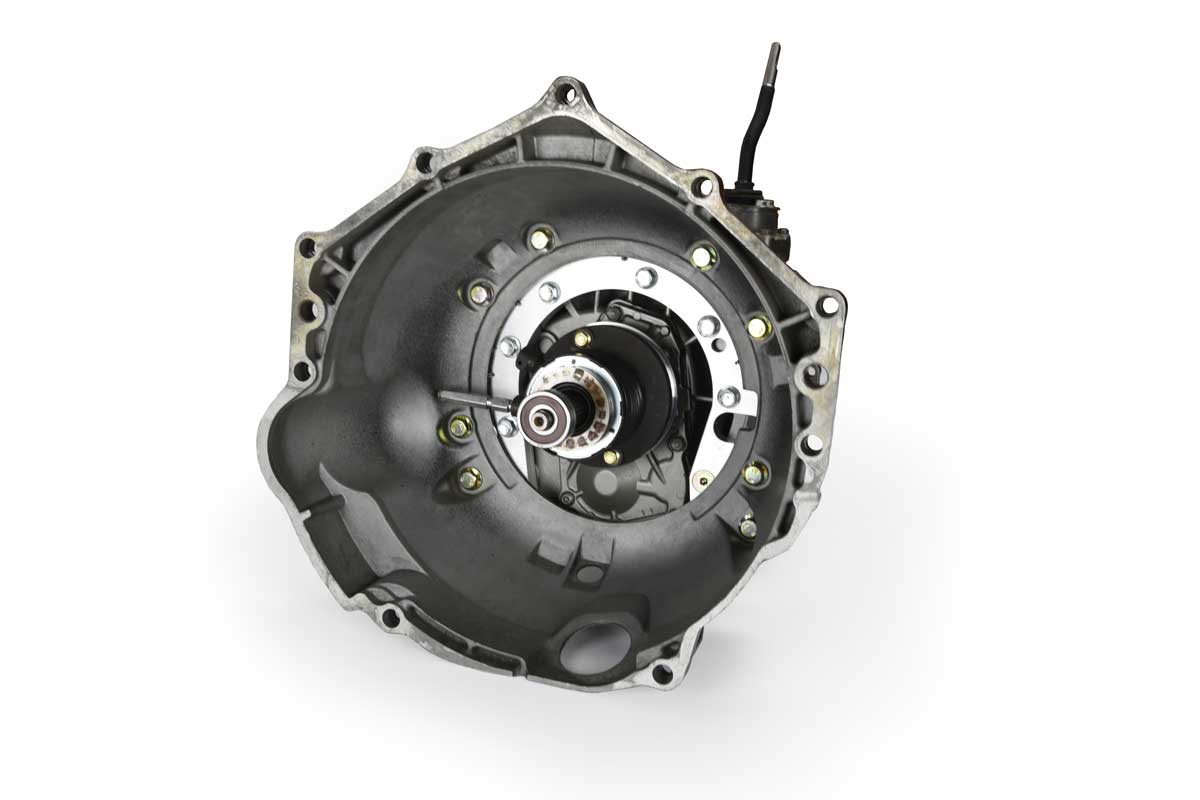

    • 1- G Force Clutch Release Bearing Spacer
    • 1- Pilot Bearing
    • 1- Hardware Kit
  • Constructed from 6061 T6 billet aluminum
  • Designed to be used with F-Body style throwout/ slave cylinder (LUK # 5100041770)
  • Use any F-Body LS1 T56 Clutch and Flywheel
  • Must be used with remote bleeder
  • AR5 Transmissions were found in Chevy Colorado and GMC Canyon in both 2WD and 4x4.

Assembly Tips

  • Mate your Aisin AR5 5-speed manual transmission to any short-crank LS Gen 3 or Gen 4 engine utilizing this G Force Adapter kit
  • Designed to be used with an LS Style 4L60e bellhousing (not included)
  • Comes with the following:
    • 1- G Force Bellhousing Adapter
    • 1- G Force Clutch Release Bearing Spacer
    • 1- Pilot Bearing
    • 1- Hardware Kit
  • Constructed from 6061 T6 billet aluminum
  • Designed to be used with F-Body style throwout/ slave cylinder (LUK # 5100041770)
  • Use any F-Body LS1 T56 Clutch and Flywheel
  • Must be used with remote bleeder
  • AR5 Transmissions were found in Chevy Colorado and GMC Canyon in both 2WD and 4x4.

Assembly Tips

G Force and our Partner Brands engineer bold solutions that make installation easier without sacrificing quality. Get more support from G Force.

DOWNLOAD INSTRUCTIONS

Our engineers are also car enthusiasts—which makes designing automotive parts second nature. Because we use our products, we know the importance of crafting them with strength and durability. Get more performance from G Force.

LEARN MORE

Specifications

Weight: 10 lbs

Shipping Dimensions: 14 X 14 X 3 In

Finish: Natural Aluminum

Mounting Hardware: Included
