Honda K-Series Engine to Nissan Z33 CD009 6 Speed Transmission Adapter Kit | GF-K20Z33-S

Honda K-Series Engine to Nissan Z33 CD009 6 Speed Transmission Adapter Kit | GF-K20Z33-S

by G Force Performance Products
SKU GF-K20Z33-S
$1,040.00

Text block

Product Information

Description

Bolt a 2003-2006 Nissan 350Z CD009 6-Speed Transmission to Your Honda K20 or K24 Engine with a G Force Adapter Kit

  • This engine to transmission adapter kit allows you to mate a 2003-2006 Nissan 350Z (Z33) 6-speed manual transmission to a Honda K20 or K24 (2.0, 2.4 liter 4 cylinder) engine.
  • These engines were typically found in Honda cars and SUVs from 2001-2016.
  • The CD009/ CD00x transmission offers immense strength and smooth shifting.
  • Adapter kit fits Honda K20 and K24 engines and Nissan 350Z (Z33) manual transmissions from 2003-2006

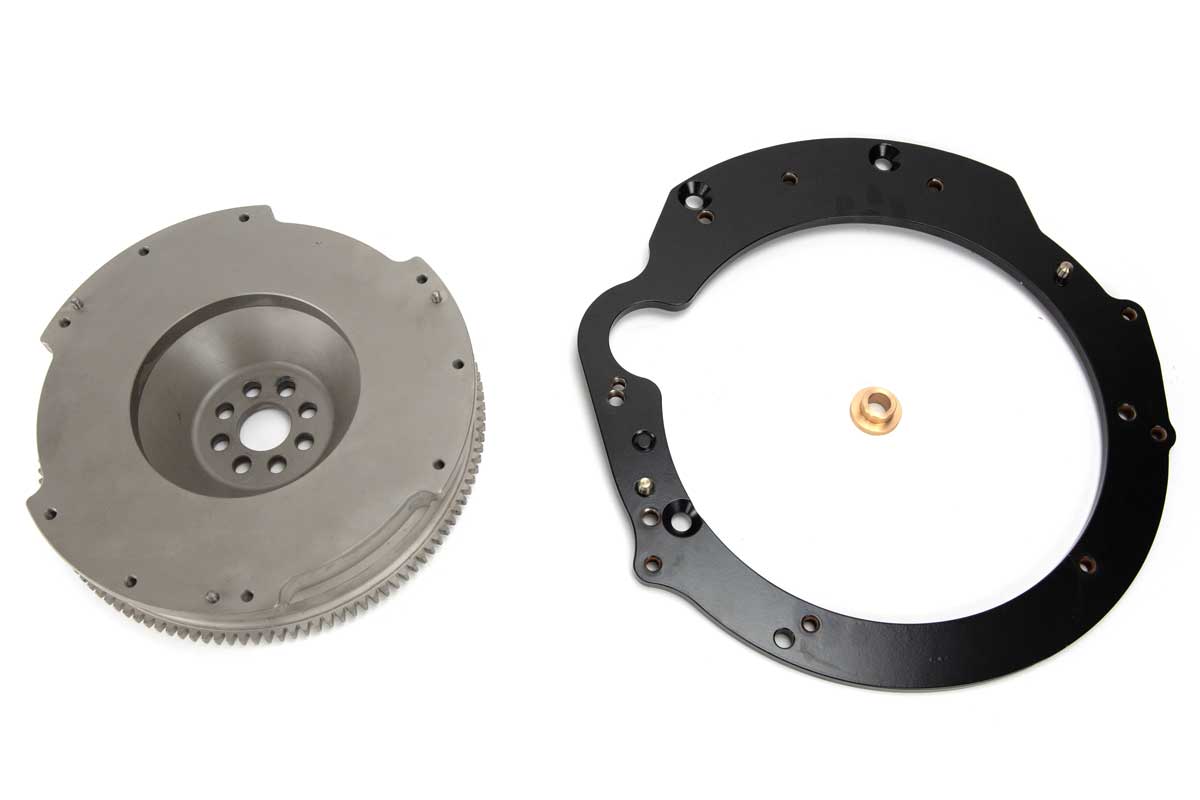

  • The kit includes:

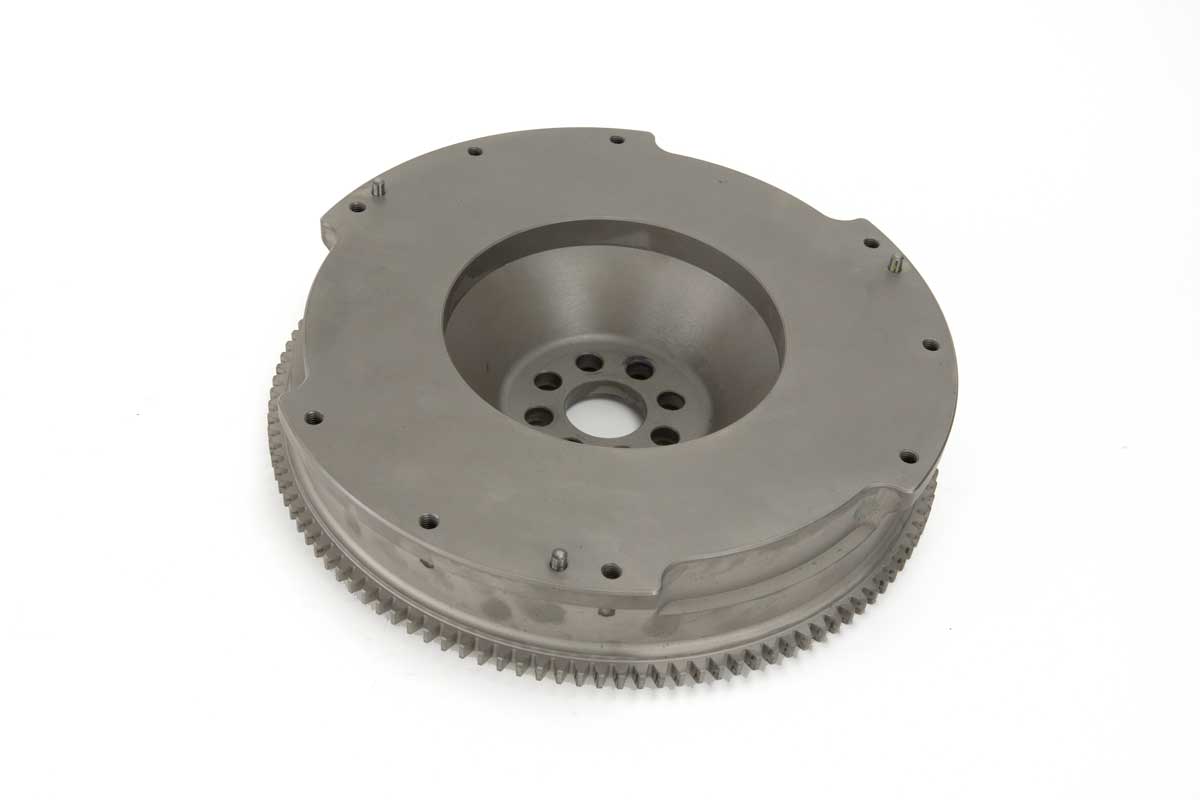

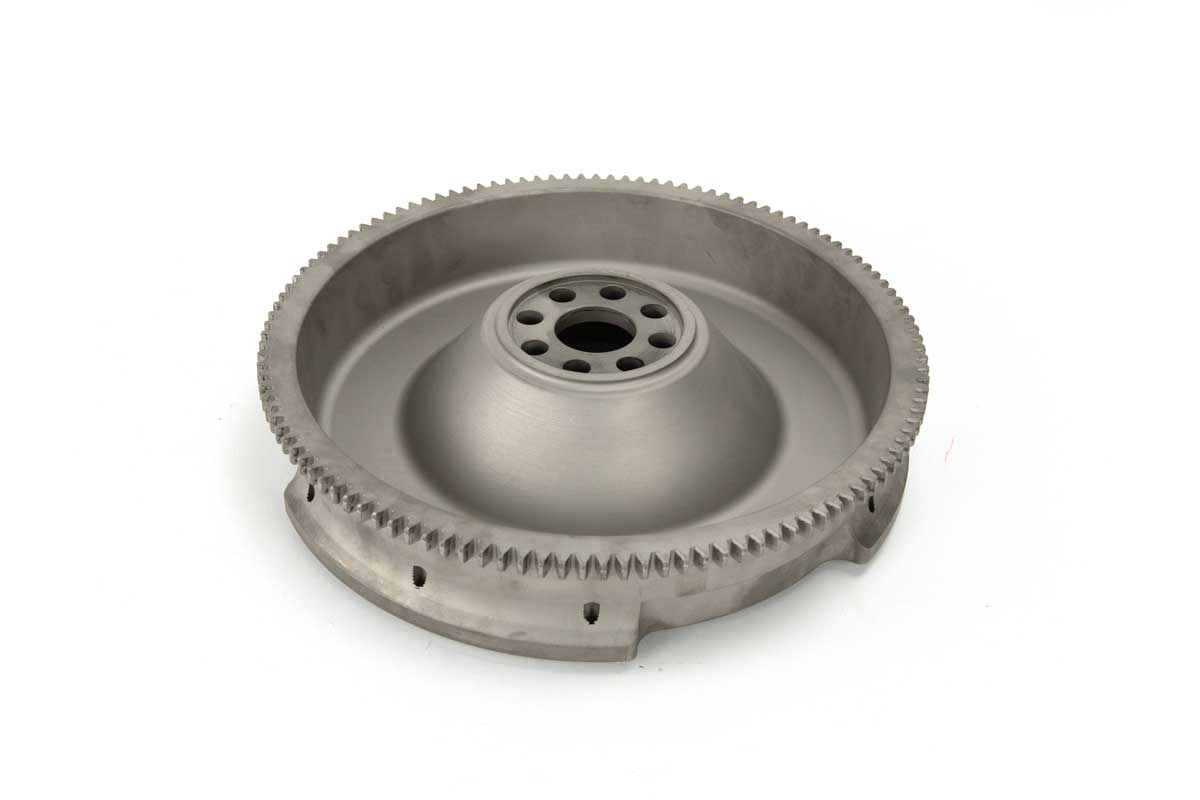

    • Custom steel flywheel

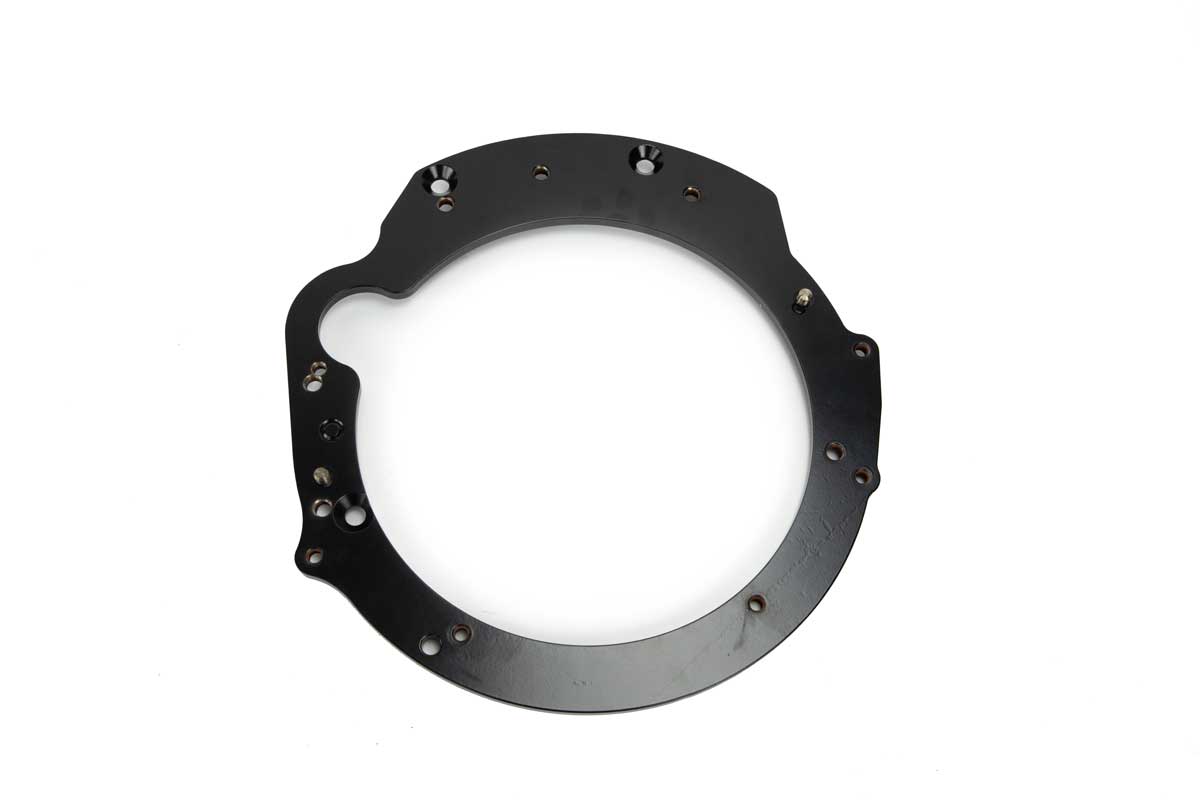

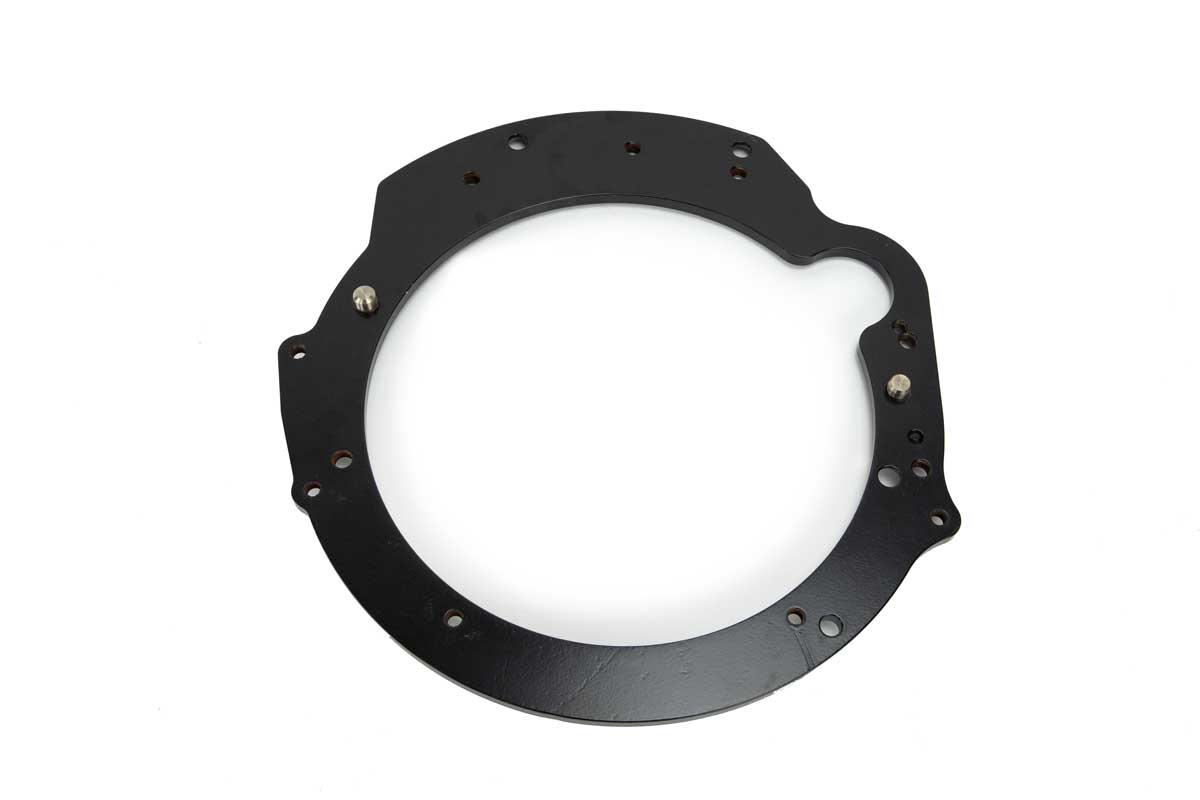

    • 3/8" steel powder coated adapter plate
    • Custom pilot bushing
    • Hardware
  • The flywheel is to be used with the 350z pressure plate/clutch setup.
  • The kit utilizes the K series starter.
  • The GF-K20Z33-S uses a 350z pressure plate/clutch and throw-out bearing.
  • To streamline your install, the following hardware is sold separately: GF-Z32PPB-KIT,  GF-LSZ32-D)
  • Reuse or buy new K-Series Flywheel bolts

Bolt a 2003-2006 Nissan 350Z CD009 6-Speed Transmission to Your Honda K20 or K24 Engine with a G Force Adapter Kit

  • This engine to transmission adapter kit allows you to mate a 2003-2006 Nissan 350Z (Z33) 6-speed manual transmission to a Honda K20 or K24 (2.0, 2.4 liter 4 cylinder) engine.
  • These engines were typically found in Honda cars and SUVs from 2001-2016.
  • The CD009/ CD00x transmission offers immense strength and smooth shifting.
  • Adapter kit fits Honda K20 and K24 engines and Nissan 350Z (Z33) manual transmissions from 2003-2006
  • The kit includes:
    • Custom steel flywheel
    • 3/8" steel powder coated adapter plate
    • Custom pilot bushing
    • Hardware
  • The flywheel is to be used with the 350z pressure plate/clutch setup.
  • The kit utilizes the K series starter.
  • The GF-K20Z33-S uses a 350z pressure plate/clutch and throw-out bearing.
  • To streamline your install, the following hardware is sold separately: GF-Z32PPB-KIT,  GF-LSZ32-D)
  • Reuse or buy new K-Series Flywheel bolts

G Force and our Partner Brands engineer bold solutions that make installation easier without sacrificing quality. Get more support from G Force.

DOWNLOAD INSTRUCTIONS

Weight: 32 lbs

Shipping Dimensions: 21X 18 X 5 In

Finish: Black Powder Coated

Mounting Hardware: Included

Use standard Honda torque specs when tightening fasteners to the K-Series crank, block, etc. Use Nissan specs when tightening the pressure plate, etc.

Whether you are doing a K-Series swap into a 350Z or any vehicle, This Adapter kit allows you to use the strong, plentiful Honda 4-cylinder in a Rear Wheel Drive application while utilizing a robust, affordable manual transmission.

The CD009 transmission has been proven to withstand over 700 horsepower in the stock state and is readily available from salvage yards or classified ads.

K-Series engines are very commonly turbocharged in stock form and hold an immense amount of power. They are found in many models of Hondas and were available in different variants to fit your goals.
