LS and SBC Engine Lift Plate Set | GF-ELP

LS and SBC Engine Lift Plate Set | GF-ELP

by G Force Performance Products
$87.00
SKU GF-ELP

Notify me when back in stock

  • Engines: LS and SBC
  • The engine lift plates are ideal for installation and removal of GM LS engines.

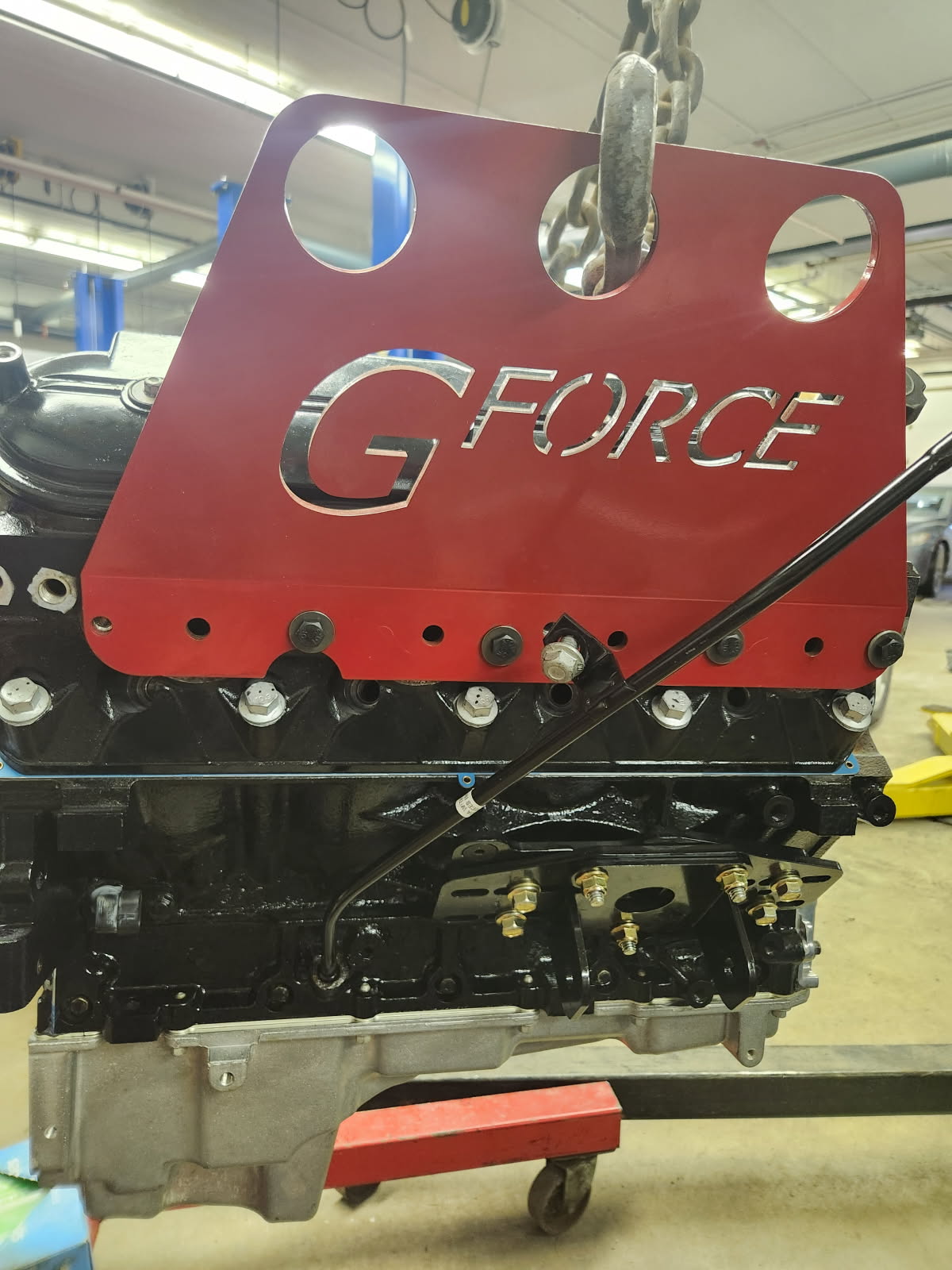

  • The proximity of the cylinder heads to the bellhousing surface does not allow for traditional attachment of lifting devices to the back of the cylinder heads. These lift plates are designed to bolt to the exhaust port surface of your cylinder heads to provide the needed installation clearance at the rear of the block.

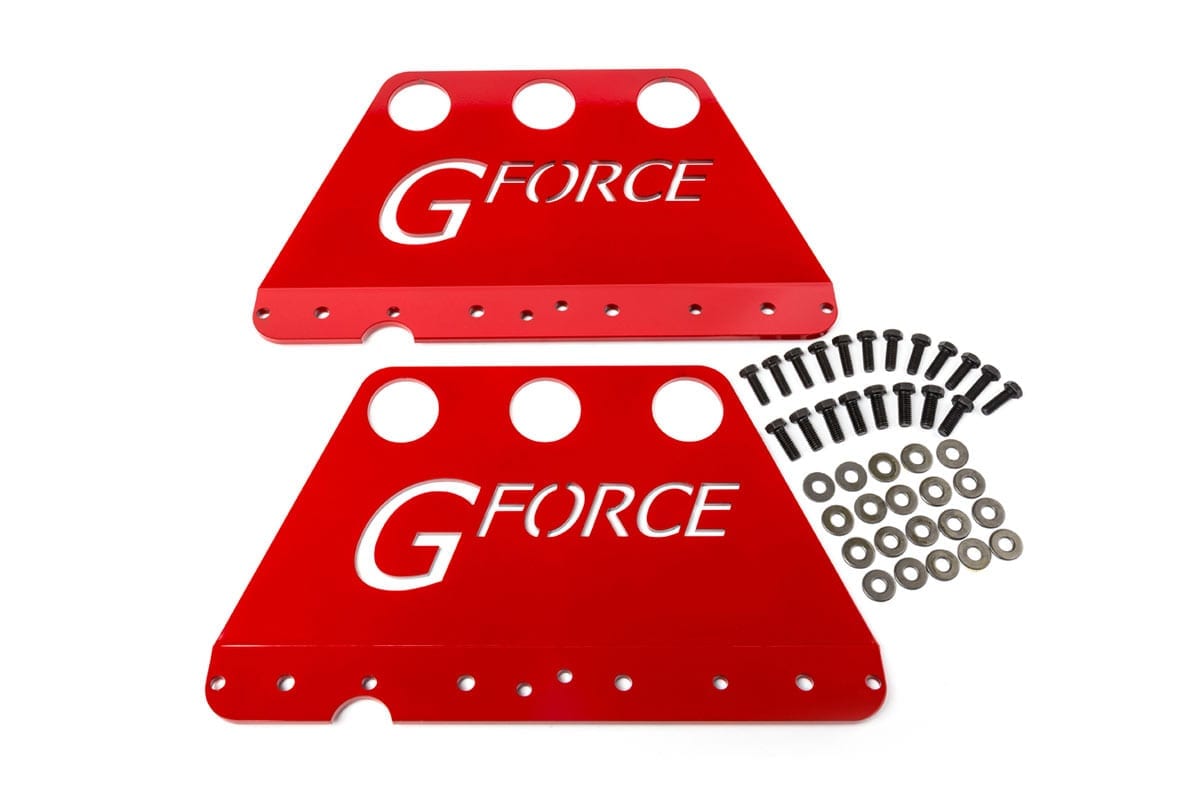

  • This set of 2 lift plates are laser cut from 1/4" structural steel, powder coat finished, and include high strength fasteners for proper attachment to your engine.
  • This G Force exclusive also incorporates provisions to mount to your Small Block Chevy engine, making this tool as versatile as it is rugged.

Customer Reviews

Based on 3 reviews
33%
(1)
67%
(2)
0%
(0)
0%
(0)
0%
(0)
G
Gary Bieler
Nice, but could be better

Could easily be better.
The angle could be changed a little.
I had to put two washers under it at each bolt, because it was already touching the bolt bosses for the coils, on the valve covers and I really did not want them to snap off.
The other thing is the holes in the top could be smaller. When using a chain and bolts, you have to wrap around it, to keep the chain from pulling through.

Thanks for the review.. We'll pass your comments along to our engineers.

T
Trevor P
LS engine lift plates

Very pleased with the plates! Easy to attach the hoist and maneuver the engine block. Cleared the truck intake and protected the coils and other delicate bits!
Thanks Trevor

S
Santiago Vega
Ls lift plates

If your ls block is assembled with ignition coils and bracket this will not clear a g body a/c box and master cylinder because plates will not go on with holes angled in.

PRODUCT DESCRIPTION

  • Engines: LS and SBC
  • The engine lift plates are ideal for installation and removal of GM LS engines.
  • The proximity of the cylinder heads to the bellhousing surface does not allow for traditional attachment of lifting devices to the back of the cylinder heads. These lift plates are designed to bolt to the exhaust port surface of your cylinder heads to provide the needed installation clearance at the rear of the block.
  • This set of 2 lift plates are laser cut from 1/4" structural steel, powder coat finished, and include high strength fasteners for proper attachment to your engine.
  • This G Force exclusive also incorporates provisions to mount to your Small Block Chevy engine, making this tool as versatile as it is rugged.
PRODUCT DETAILS

Performance Engineered from Start to Finish

Performance
Engineered

Our engineers are also car enthusiasts—which makes designing automotive parts second nature. Because we use our products, we know the importance of crafting them with strength and durability. Get more performance from G Force.

LEARN MORE

Easy Installation.
It’s Foolproof!

We engineer bold solutions that make installation easier without sacrificing quality. Get more support from G Force.

LEARN MORE

Engine

GM LS, SBC

Specifications

Weight: 22 lbs

Shipping Dimensions: 17 x 17 x 3 in

Finish: Red Powder Coated

Fasteners: Included

Customer Reviews

Based on 3 reviews
33%
(1)
67%
(2)
0%
(0)
0%
(0)
0%
(0)
G
Gary Bieler
Nice, but could be better

Could easily be better.
The angle could be changed a little.
I had to put two washers under it at each bolt, because it was already touching the bolt bosses for the coils, on the valve covers and I really did not want them to snap off.
The other thing is the holes in the top could be smaller. When using a chain and bolts, you have to wrap around it, to keep the chain from pulling through.

Thanks for the review.. We'll pass your comments along to our engineers.

T
Trevor P
LS engine lift plates

Very pleased with the plates! Easy to attach the hoist and maneuver the engine block. Cleared the truck intake and protected the coils and other delicate bits!
Thanks Trevor

S
Santiago Vega
Ls lift plates

If your ls block is assembled with ignition coils and bracket this will not clear a g body a/c box and master cylinder because plates will not go on with holes angled in.
